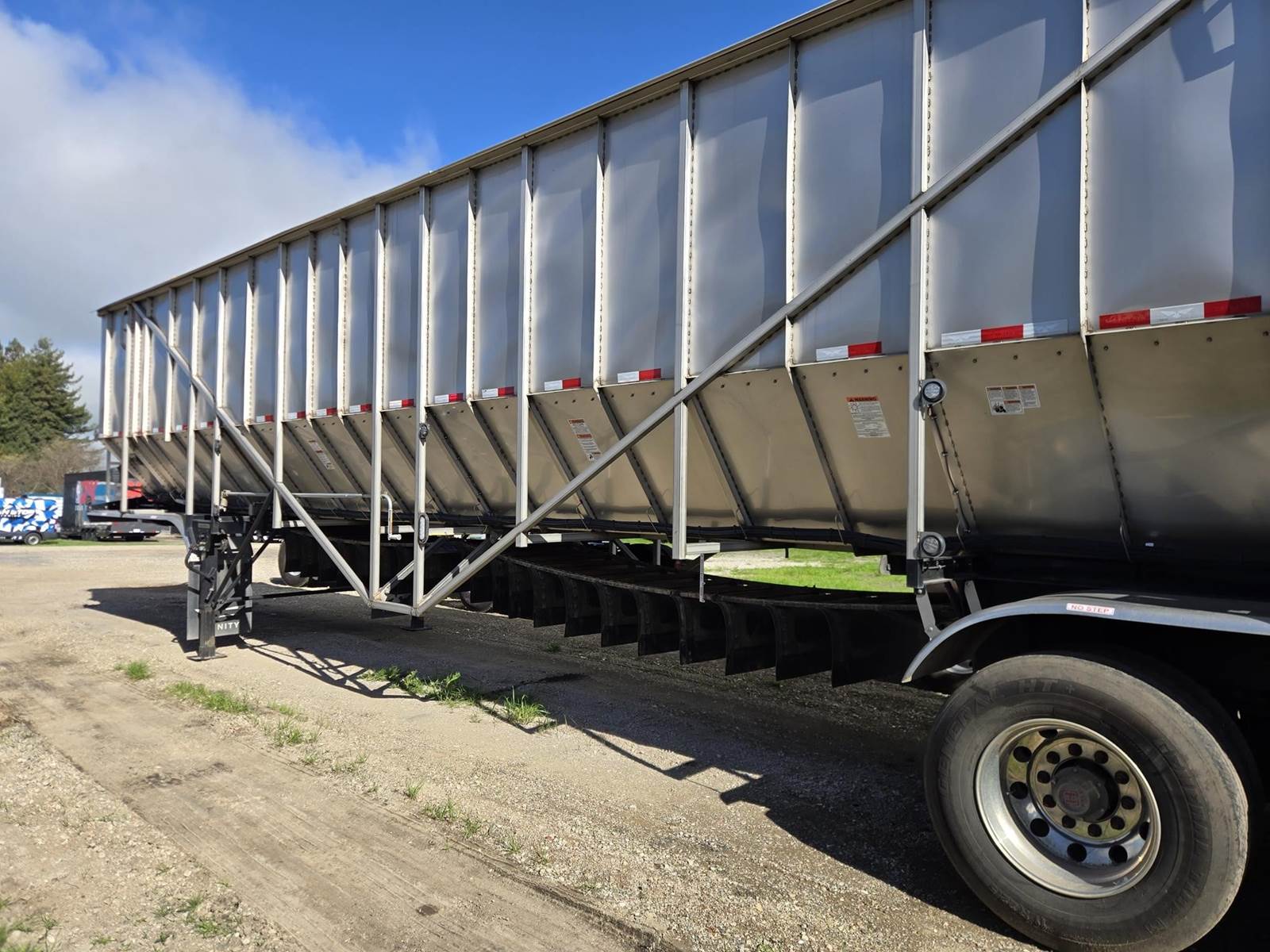

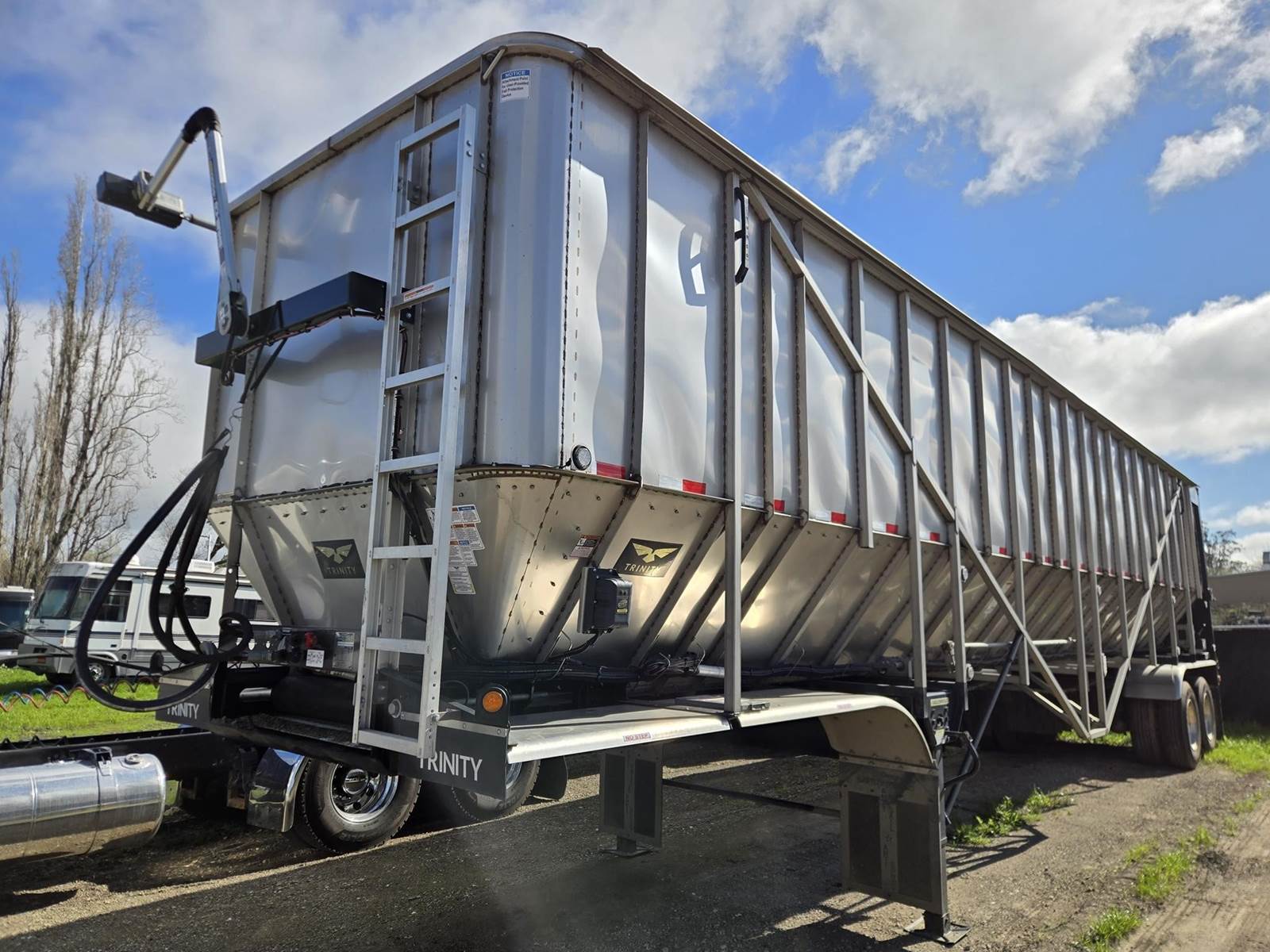

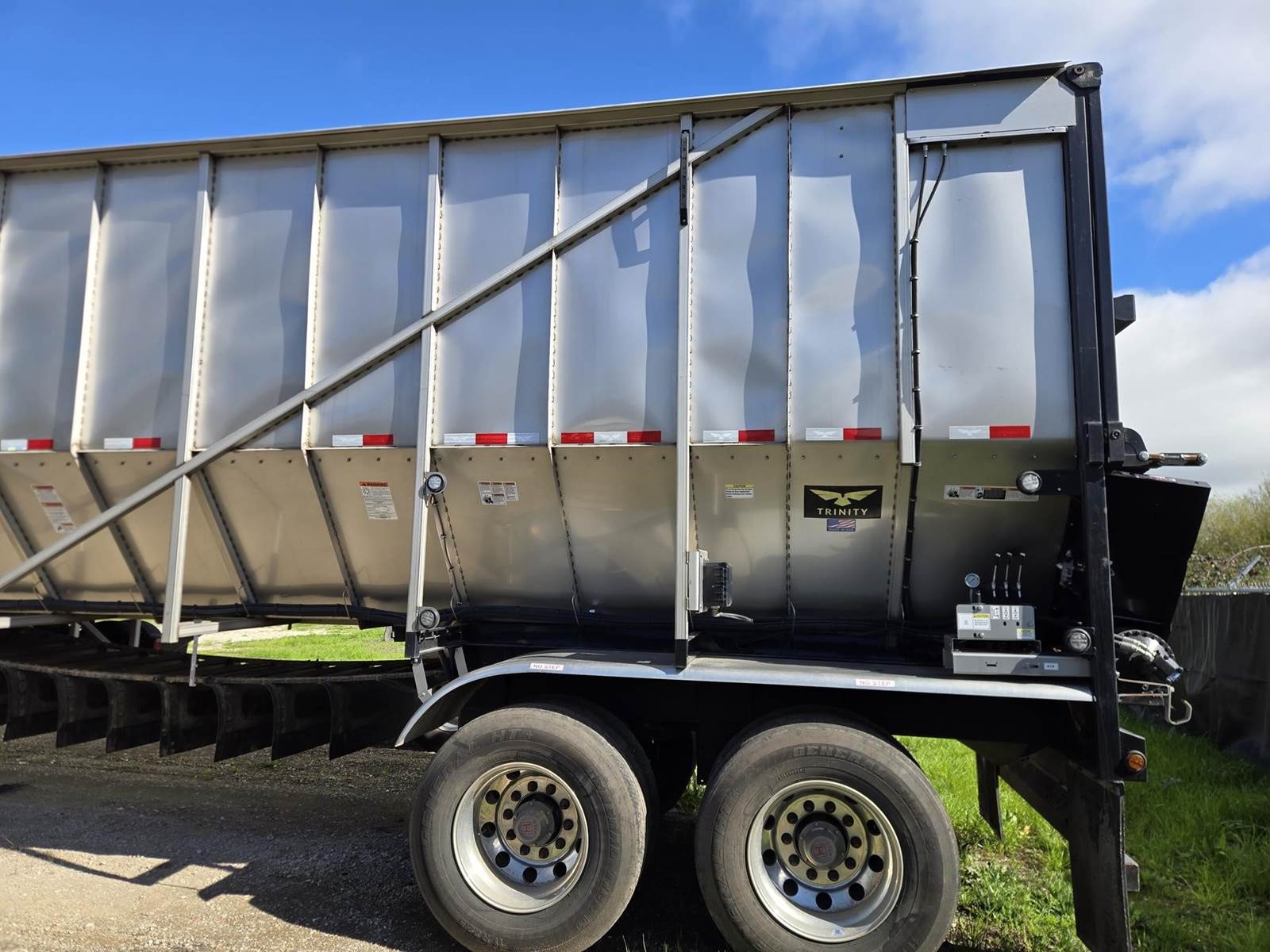

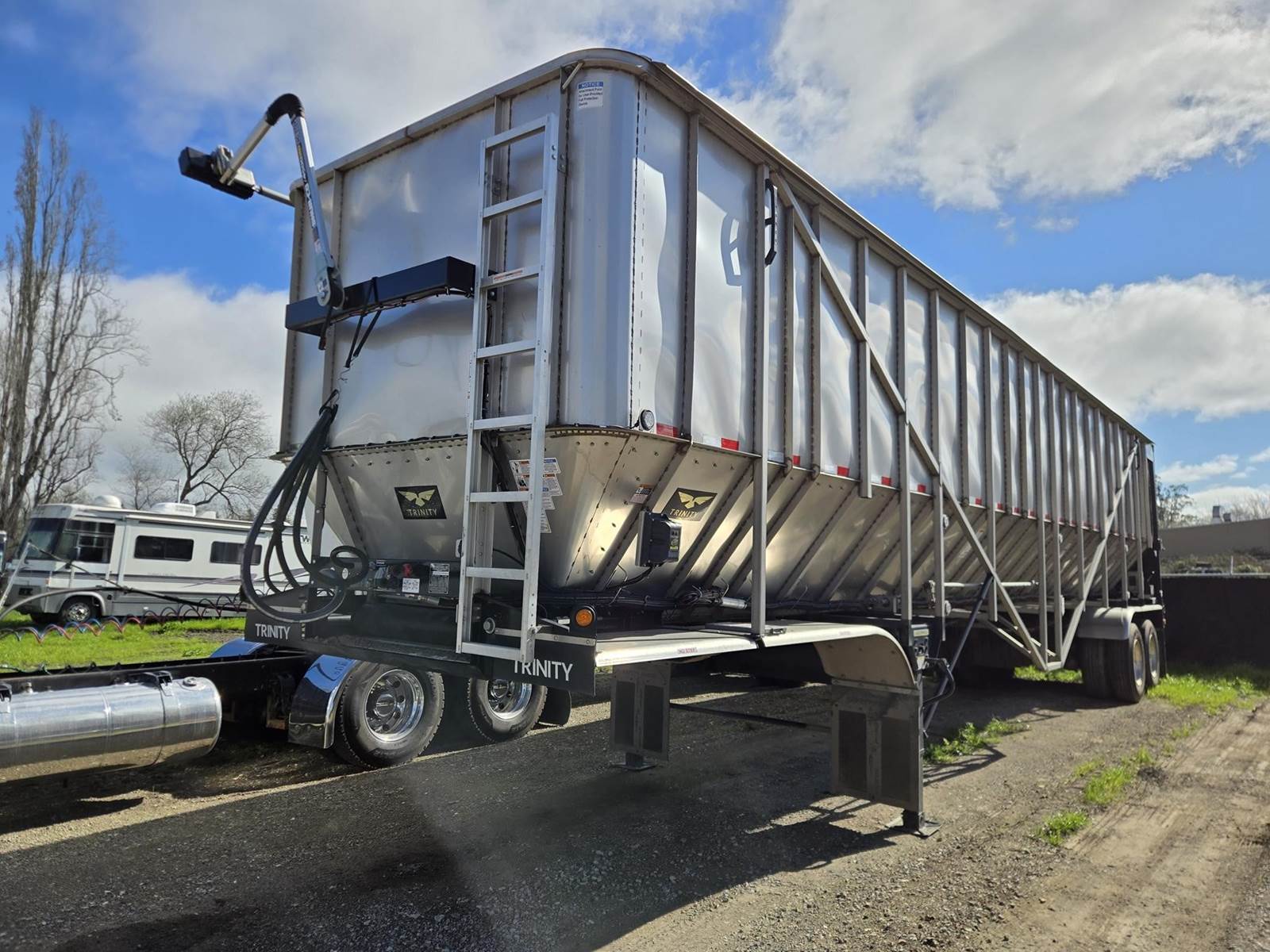

2025 Trinity 44x102 Tandem Axle Stainless Steel Belt Trailer - Air Ride, Fixed Axle

Trailer Specifications

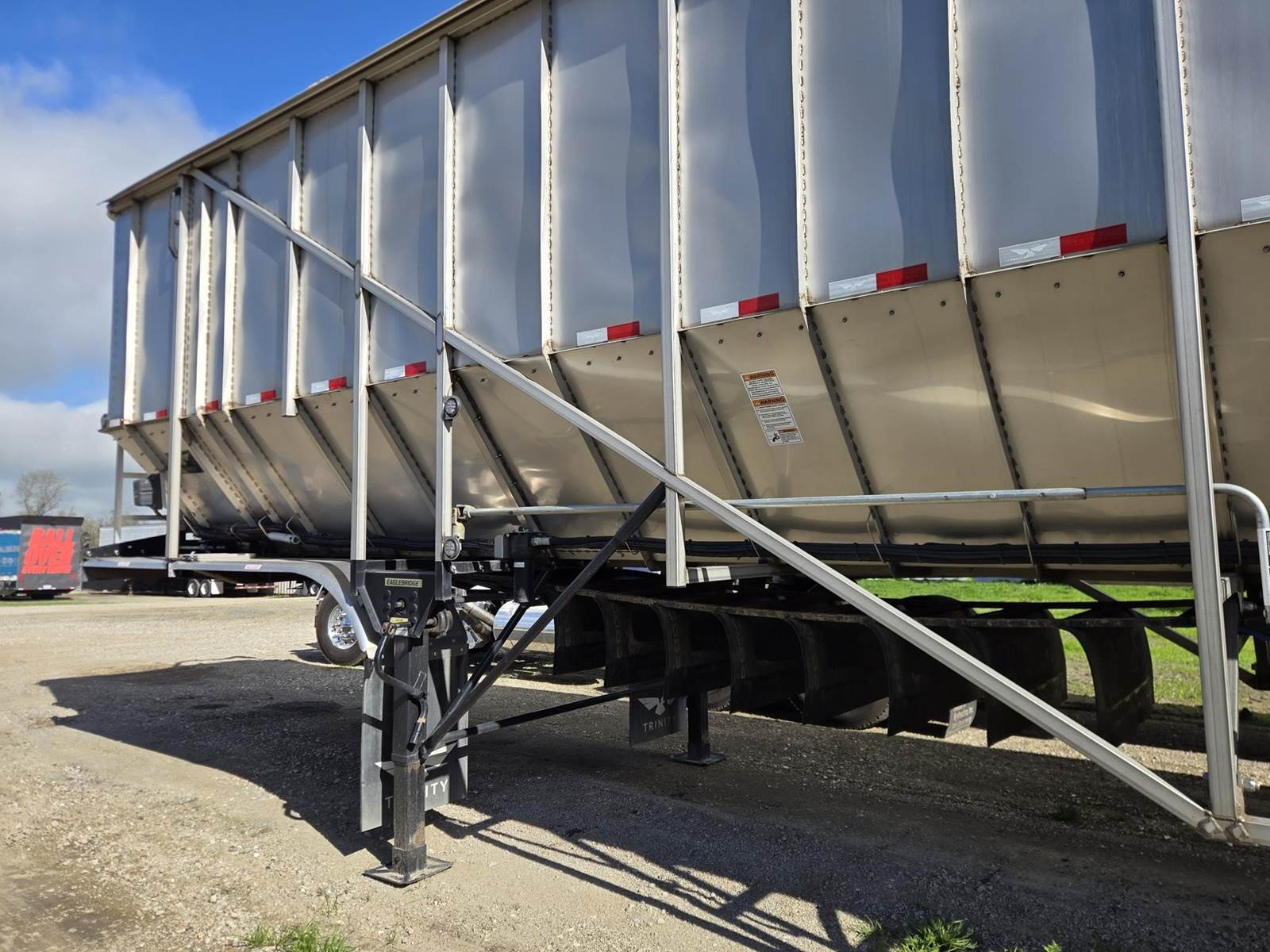

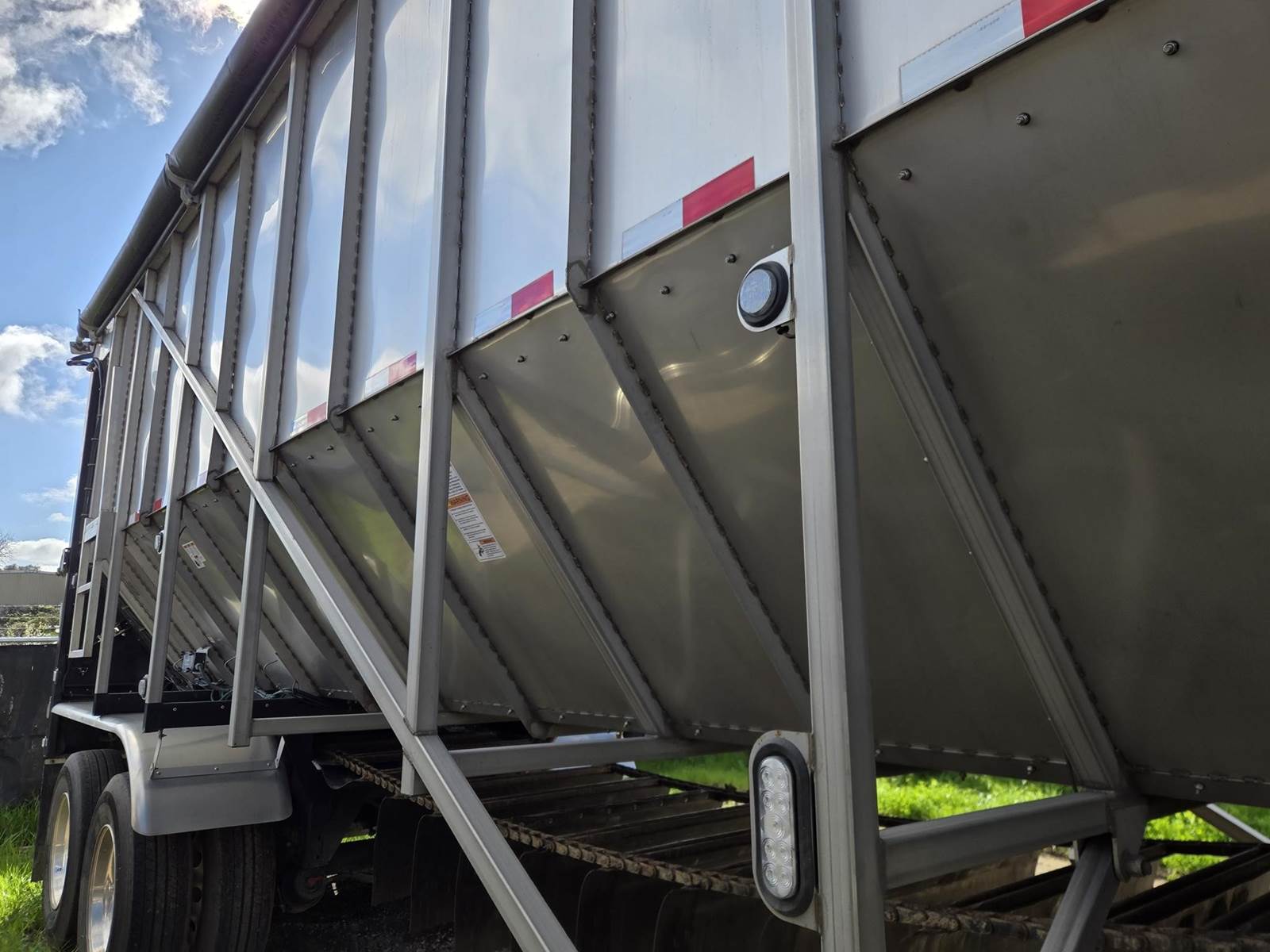

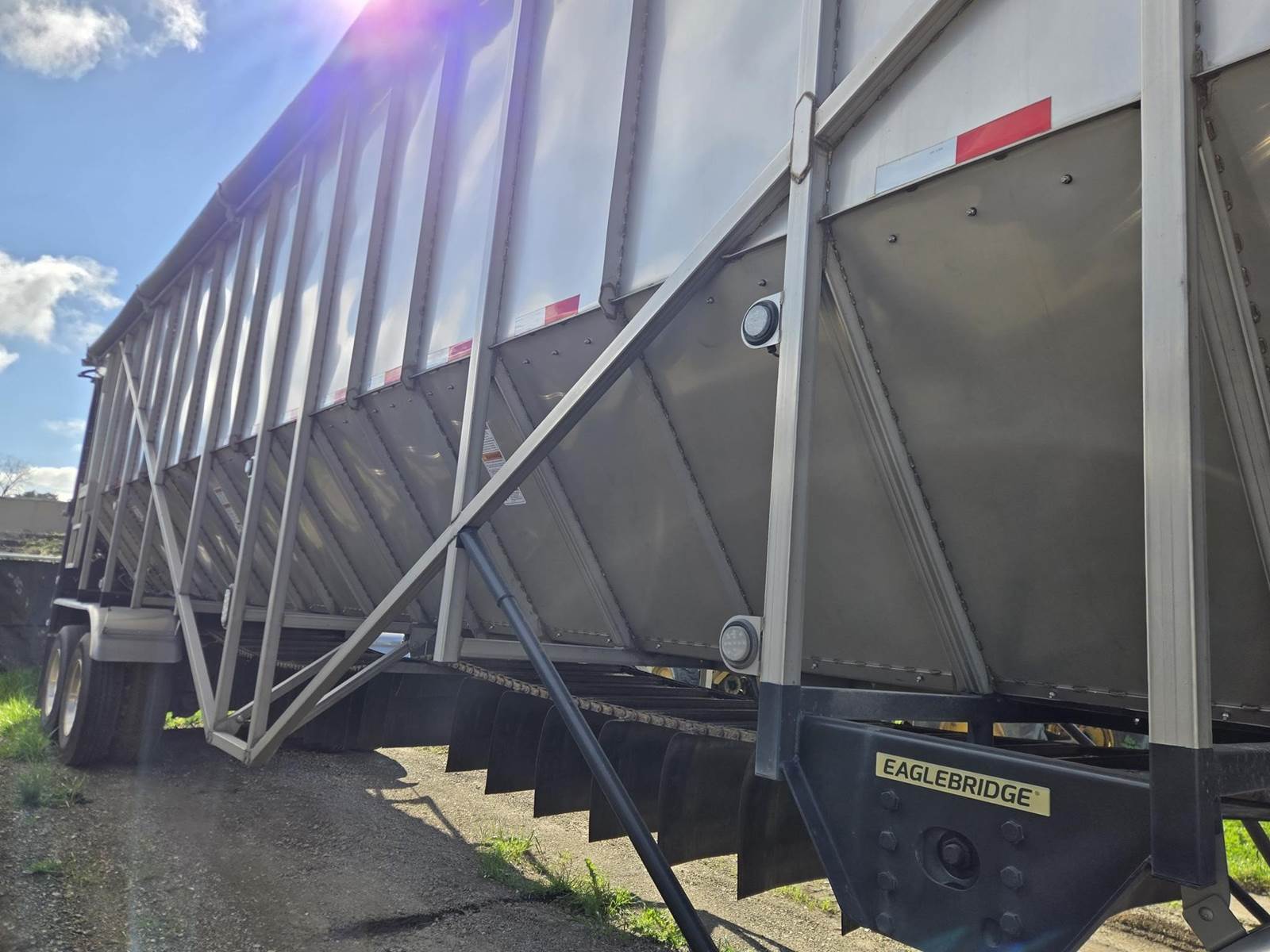

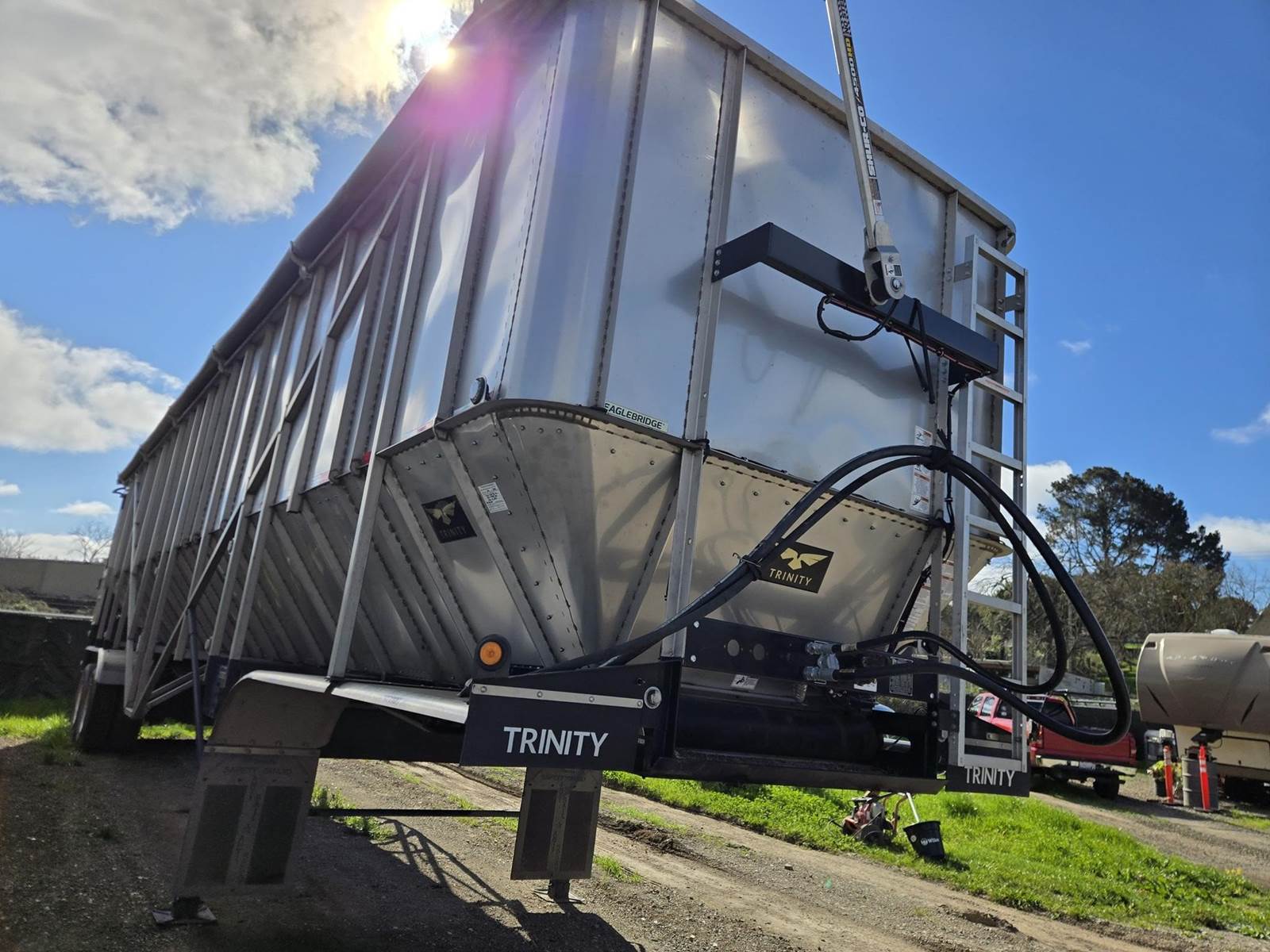

Body – L2 Stainless
Length: 44'
Belt Width: (2025) 48"
Sheet Metal: 16 Ga. Stainless
Trailer Width: 102"
King Pin Setting: 36"
Sidewall Height: 61-1/4"
Top Rail Type: Double Flush
Top Rail Material: 12 Ga. Stainless
SideFrame Material: 12 Ga. Stainless
HD Structural Bow: 1
Tarp Bow Mount Quantity: 9
Extensions
Aluminum Side Extensions: No
Body Options

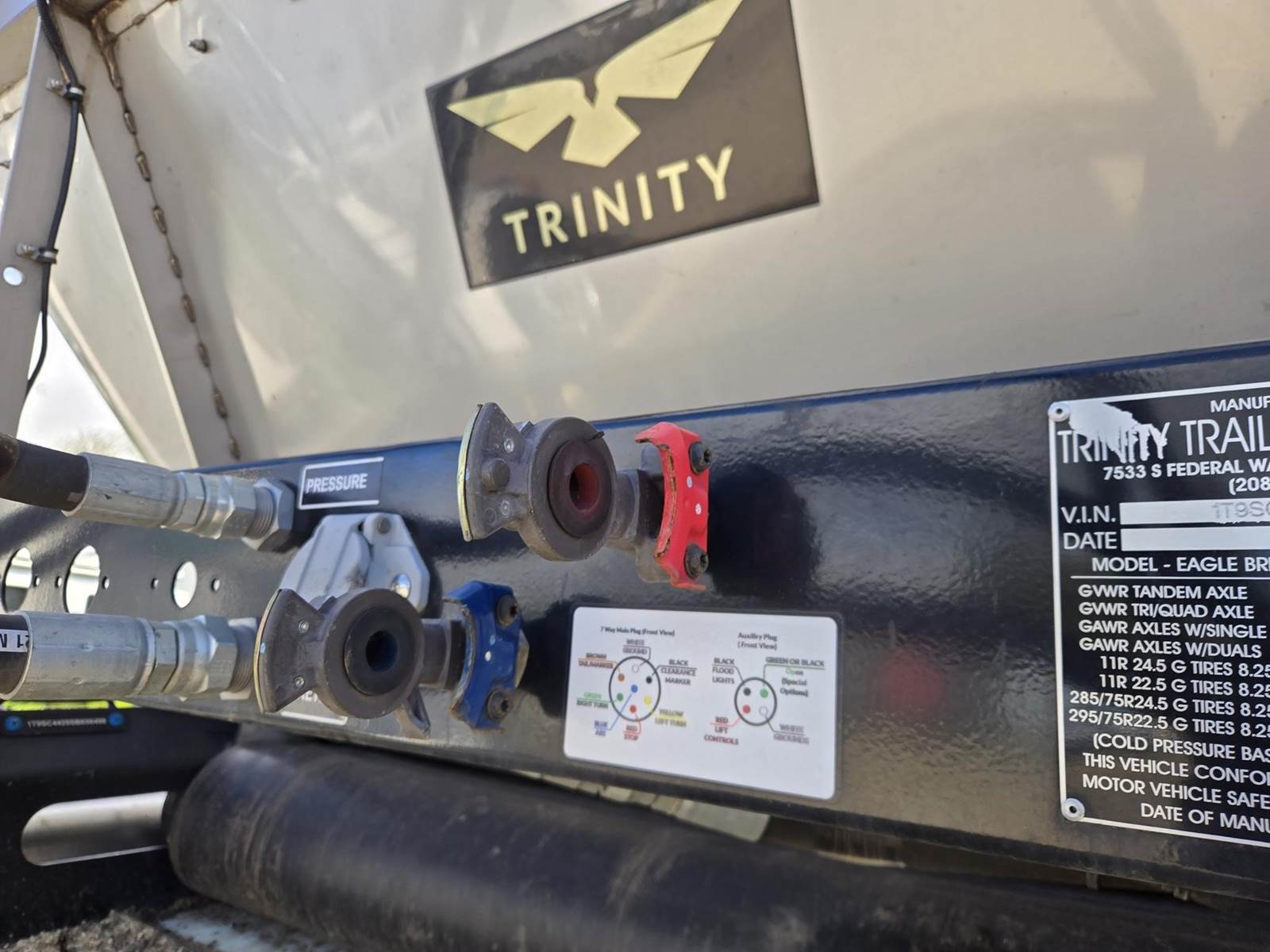

Glad Hand Mounting: Centered

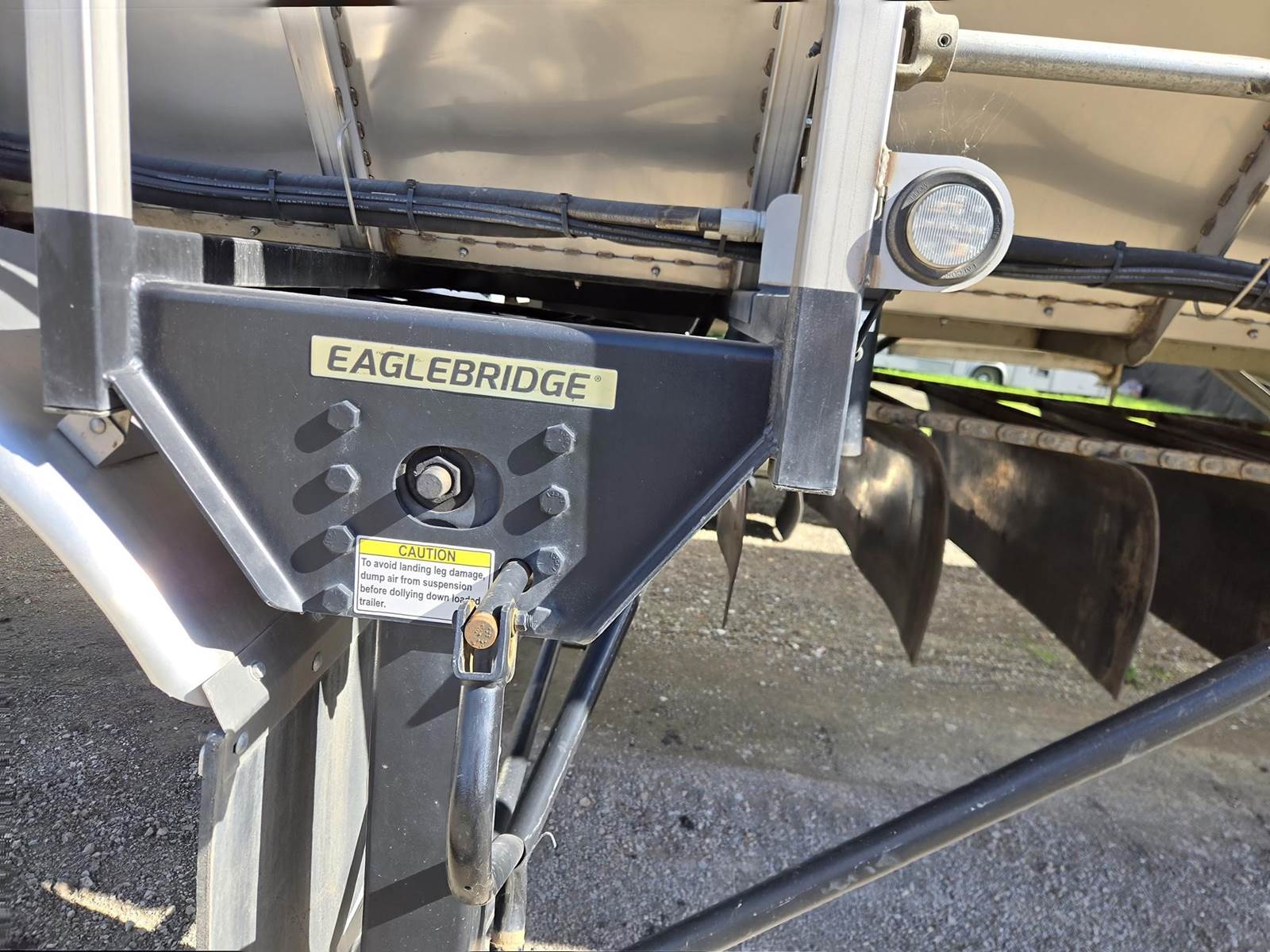

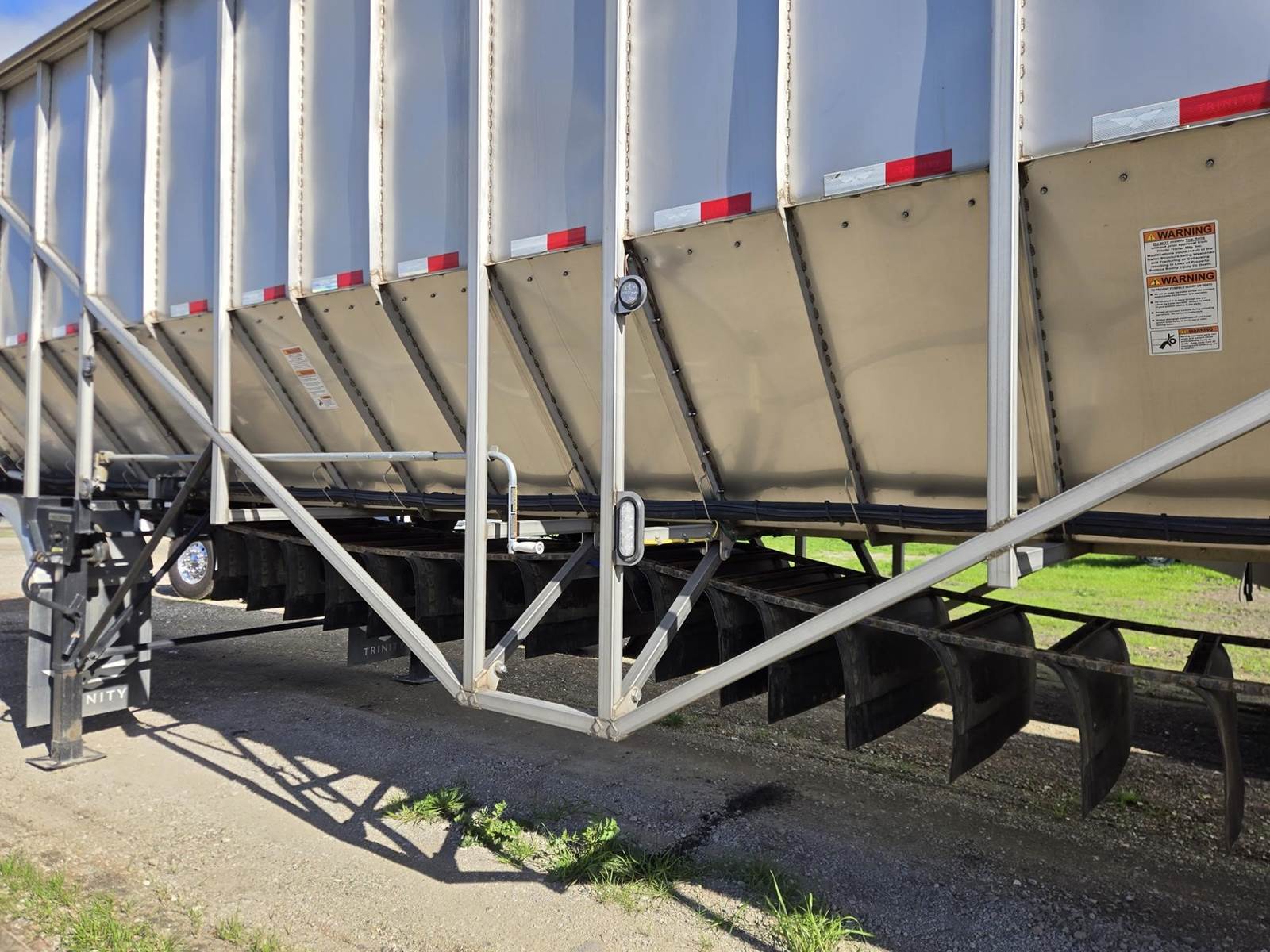

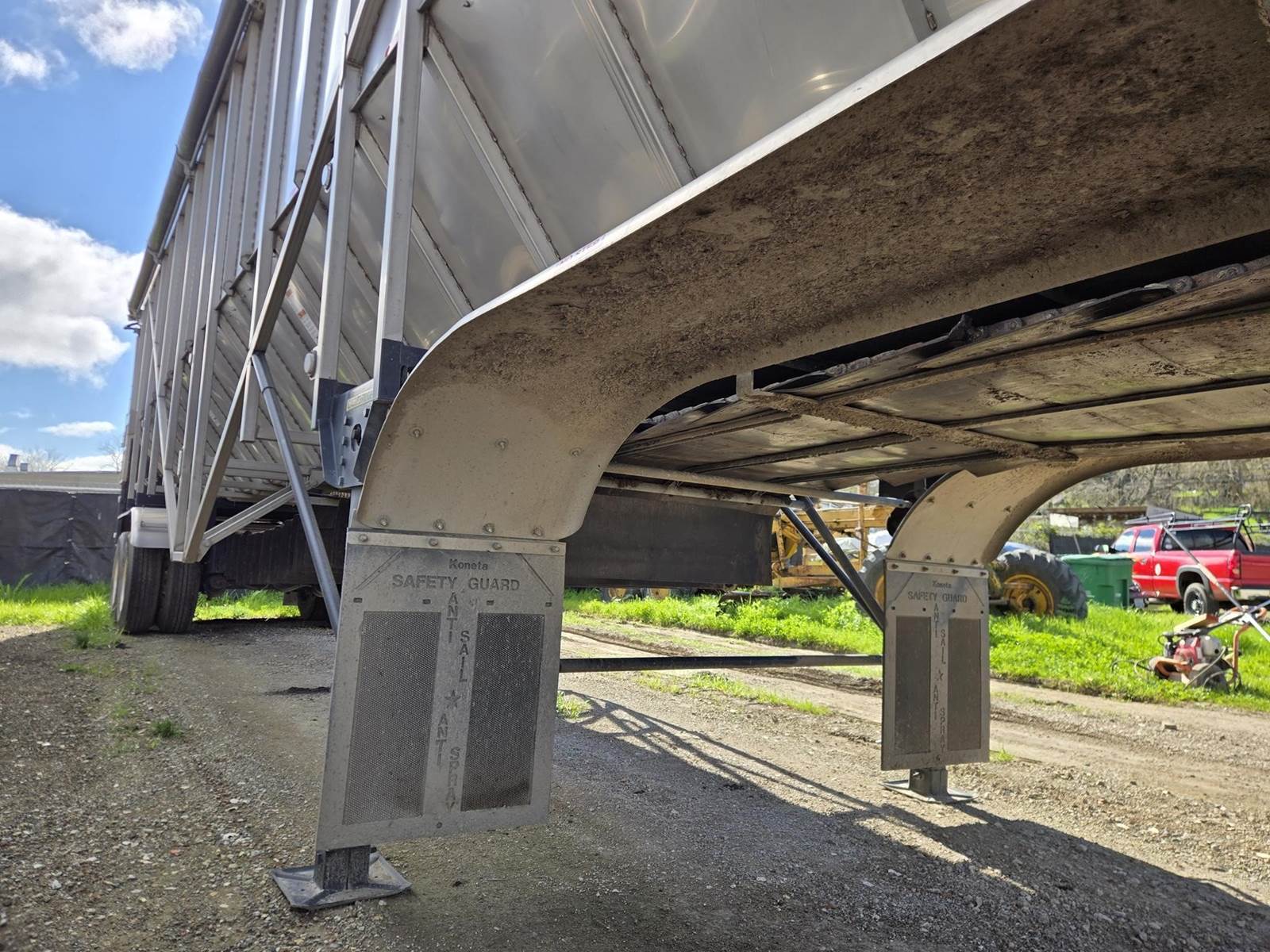

Landing Legs: Atlas 55
Rear Funnel Mounts: Yes
Front Seal Options: Reinforced Front Seal
Tail Fin Options: Standard Tail Fins
Enclosed Triangles: Yes

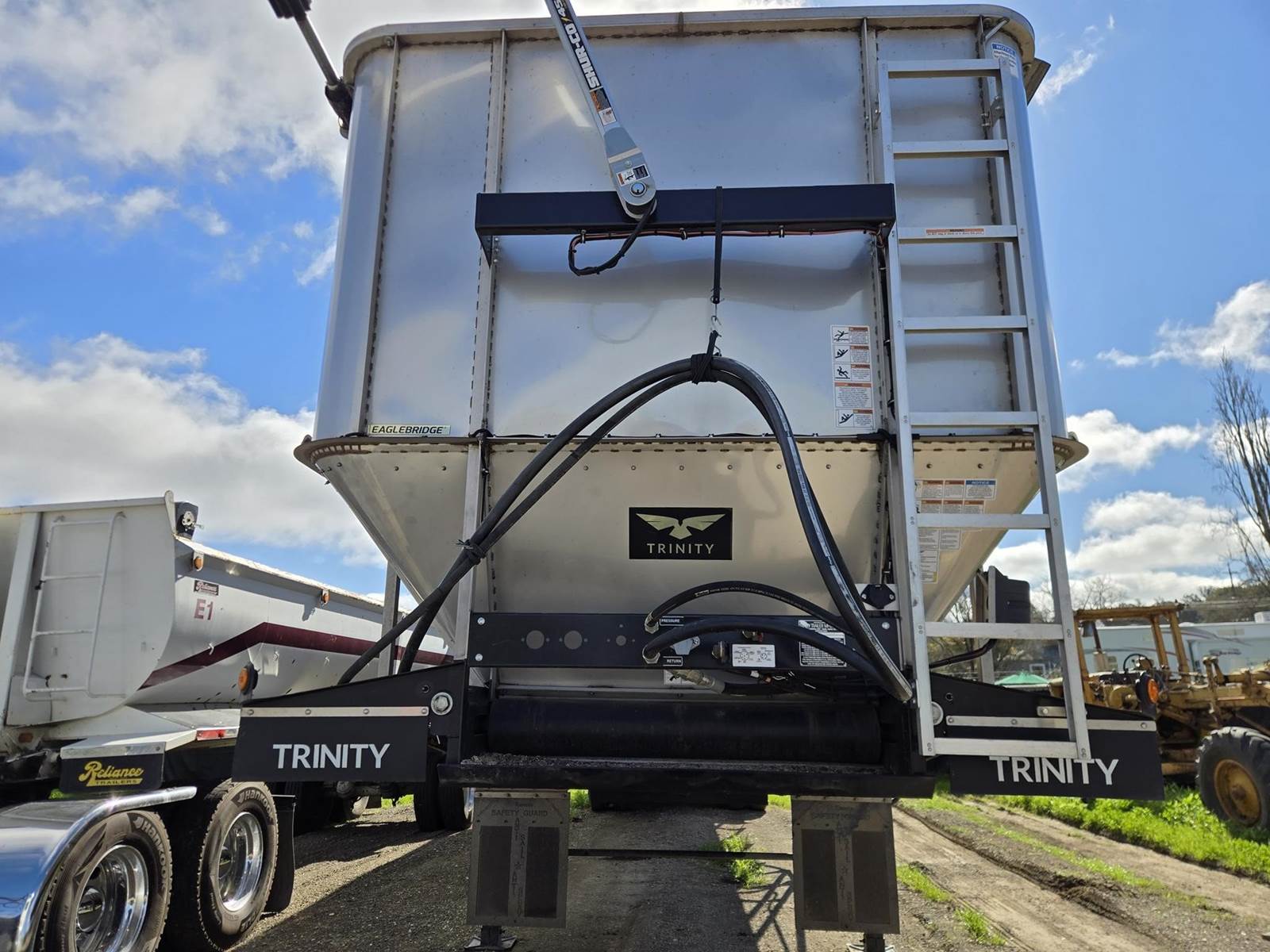

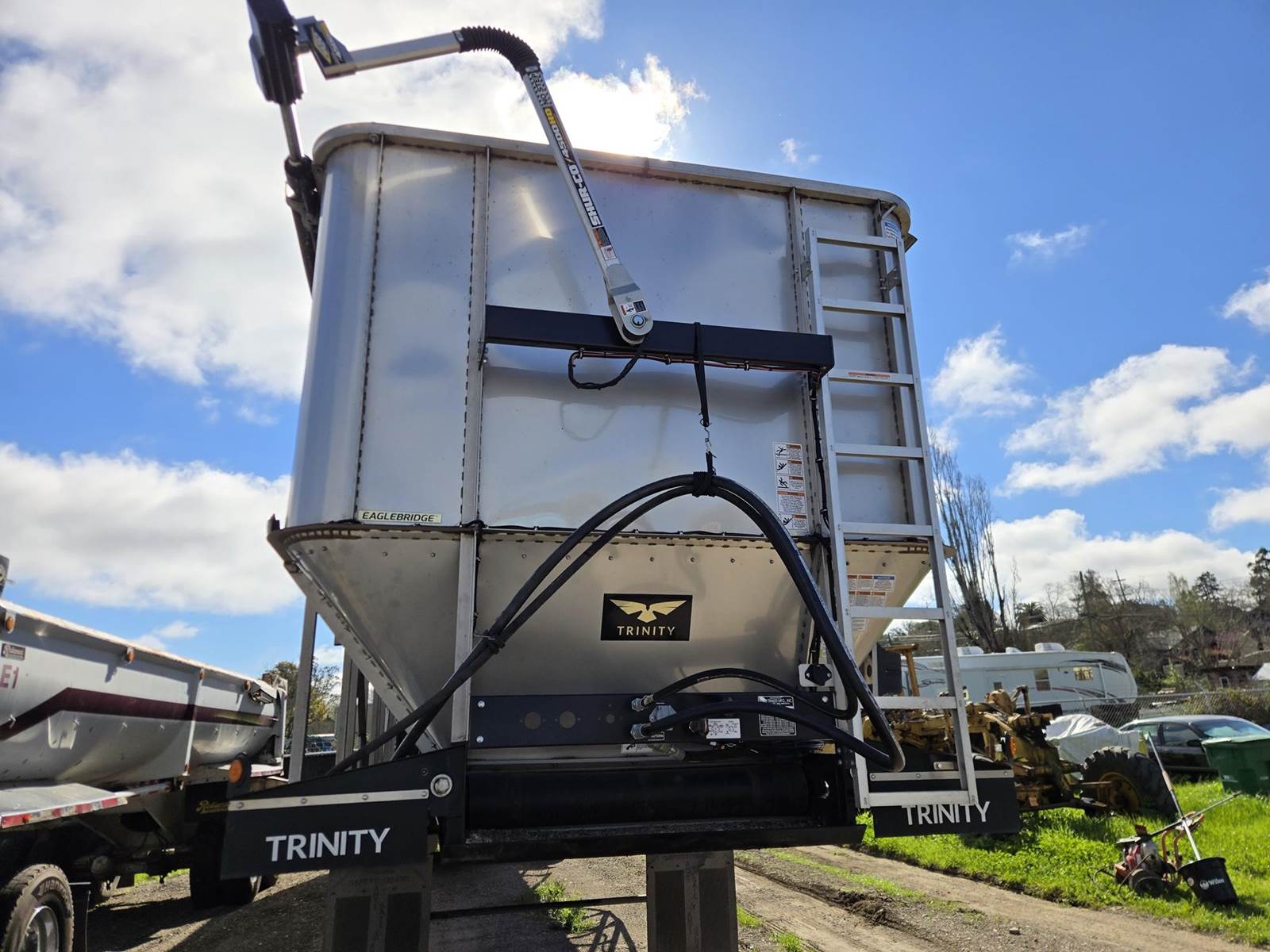

Front Ladder: Yes
Rear Ladder Type: Removable Maintenance Ladder
Lighting
Light Rows: Double Row Marker Lights
Marker Lights Type: Clear Lens LED
Tail Lights: 3 Tail Lights per Side
Tail Light Mounting: Standard Rubber Grommet
Turn Signal Color: Red
Extra Door Tail Light: Yes
J-Box: Curbside Rear
Work Lights: LED Work Lights
Work Lights Mounted: Mounted at Rear of Trailer
Number of Work Lights: 2
Auxiliary Wiring: Lights to Clearance Lights

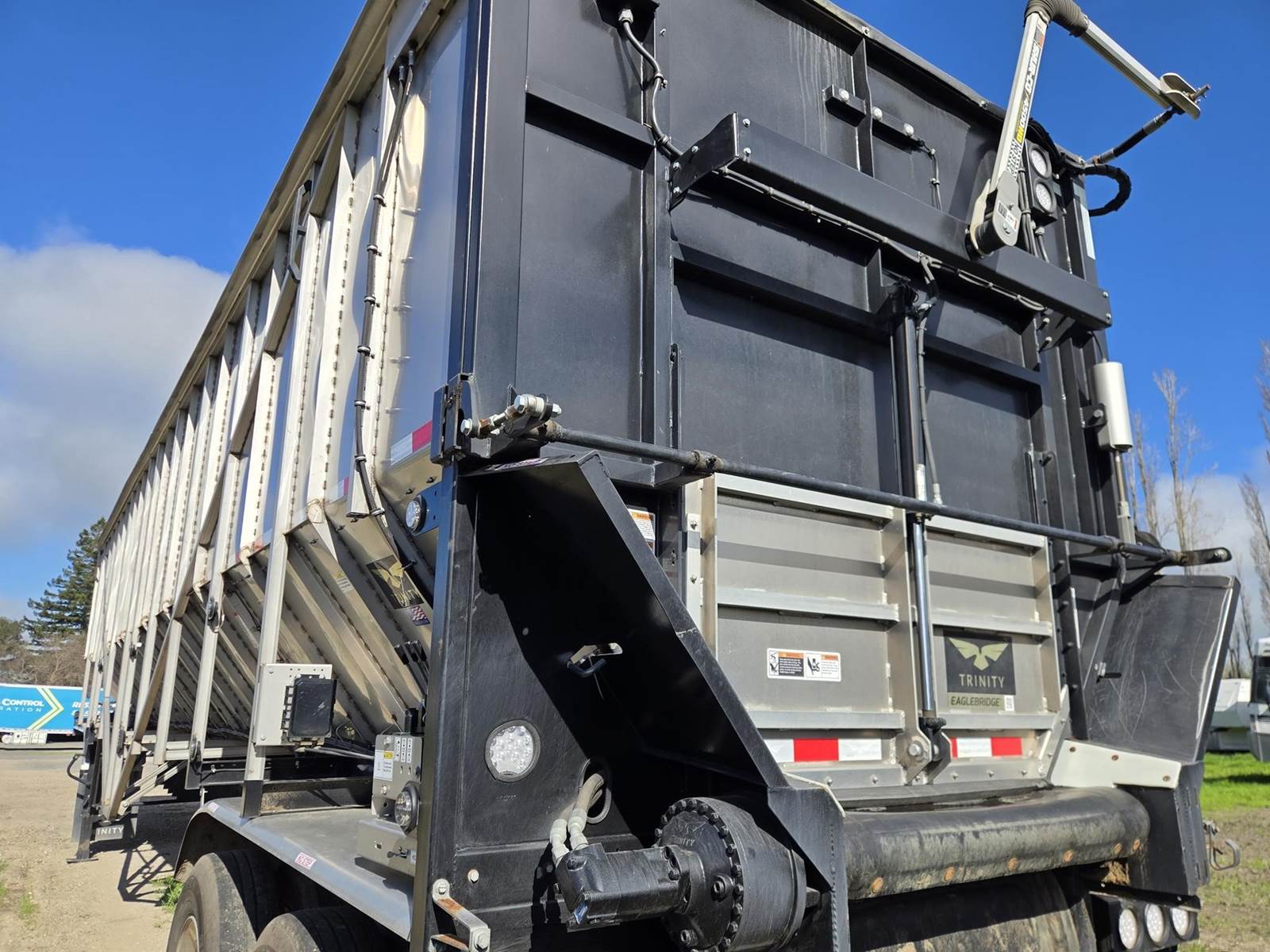

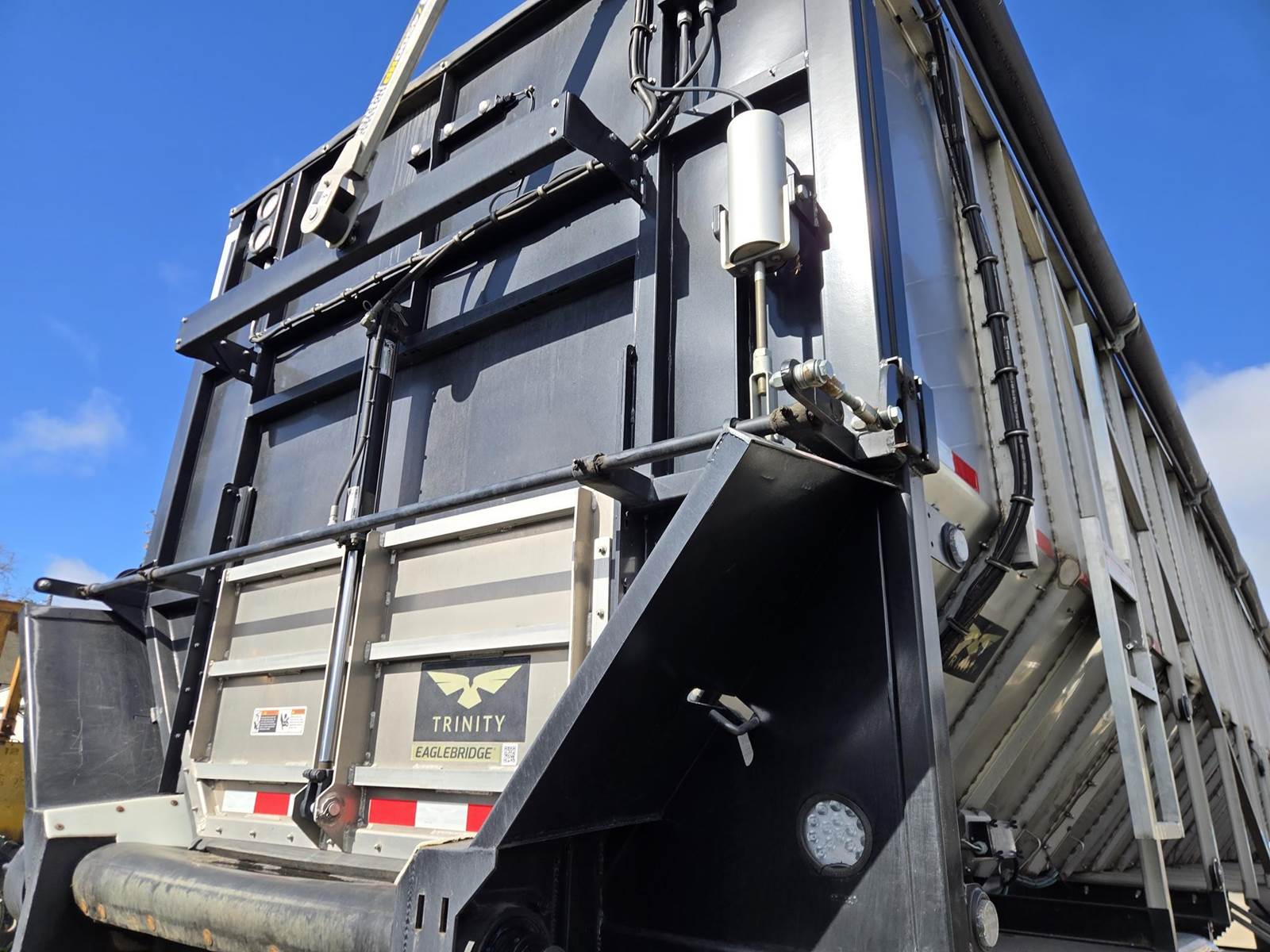

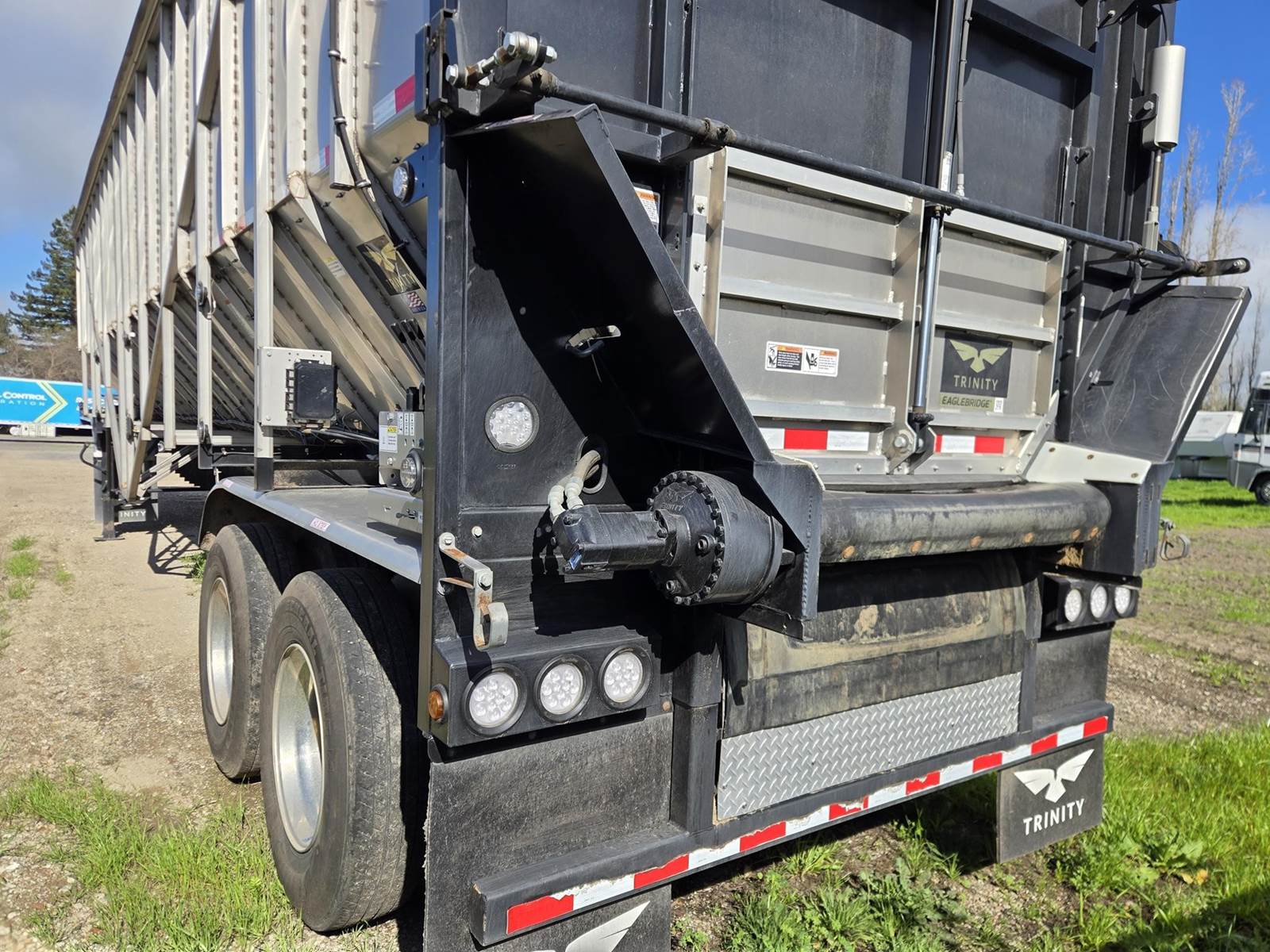

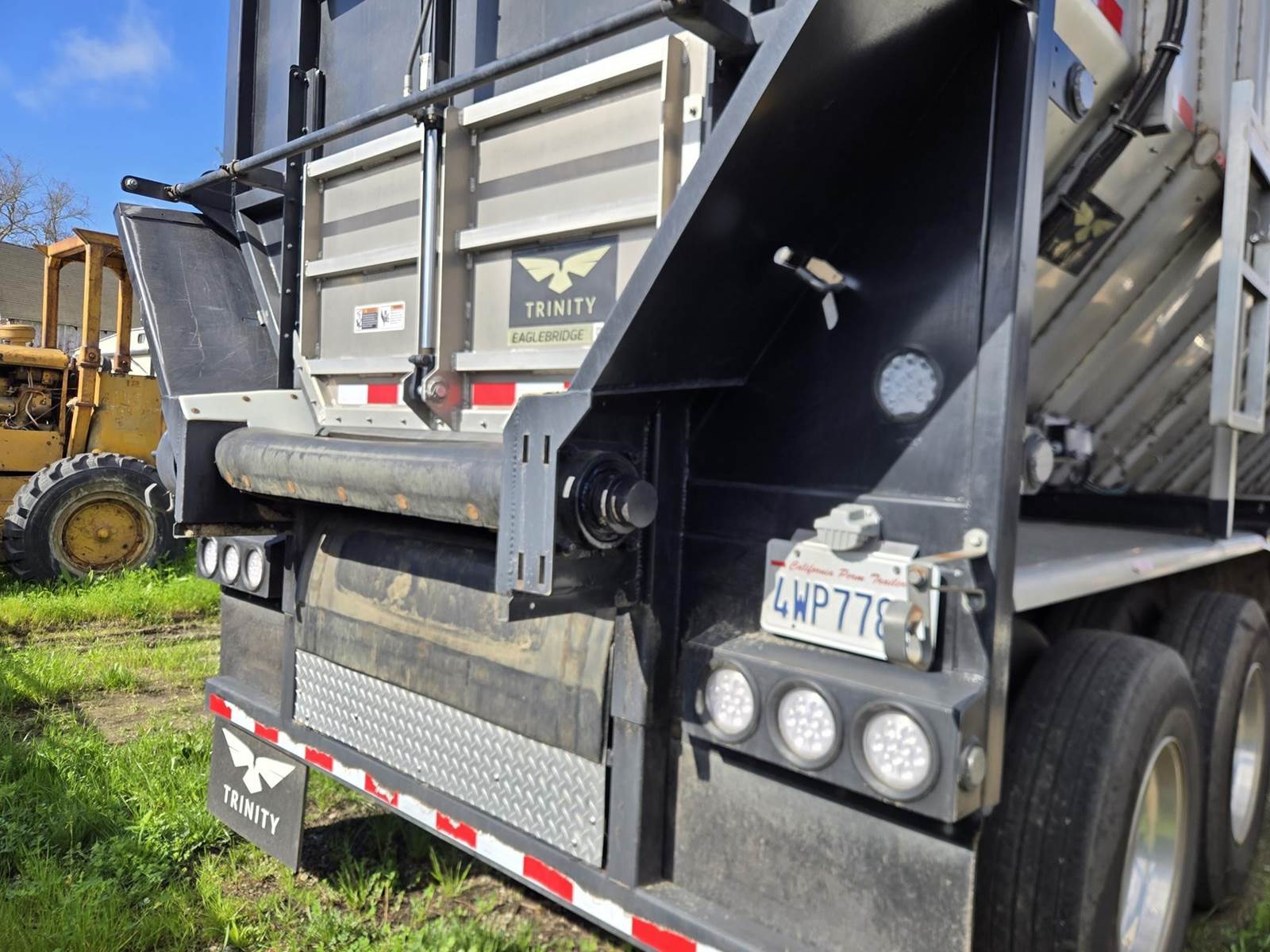

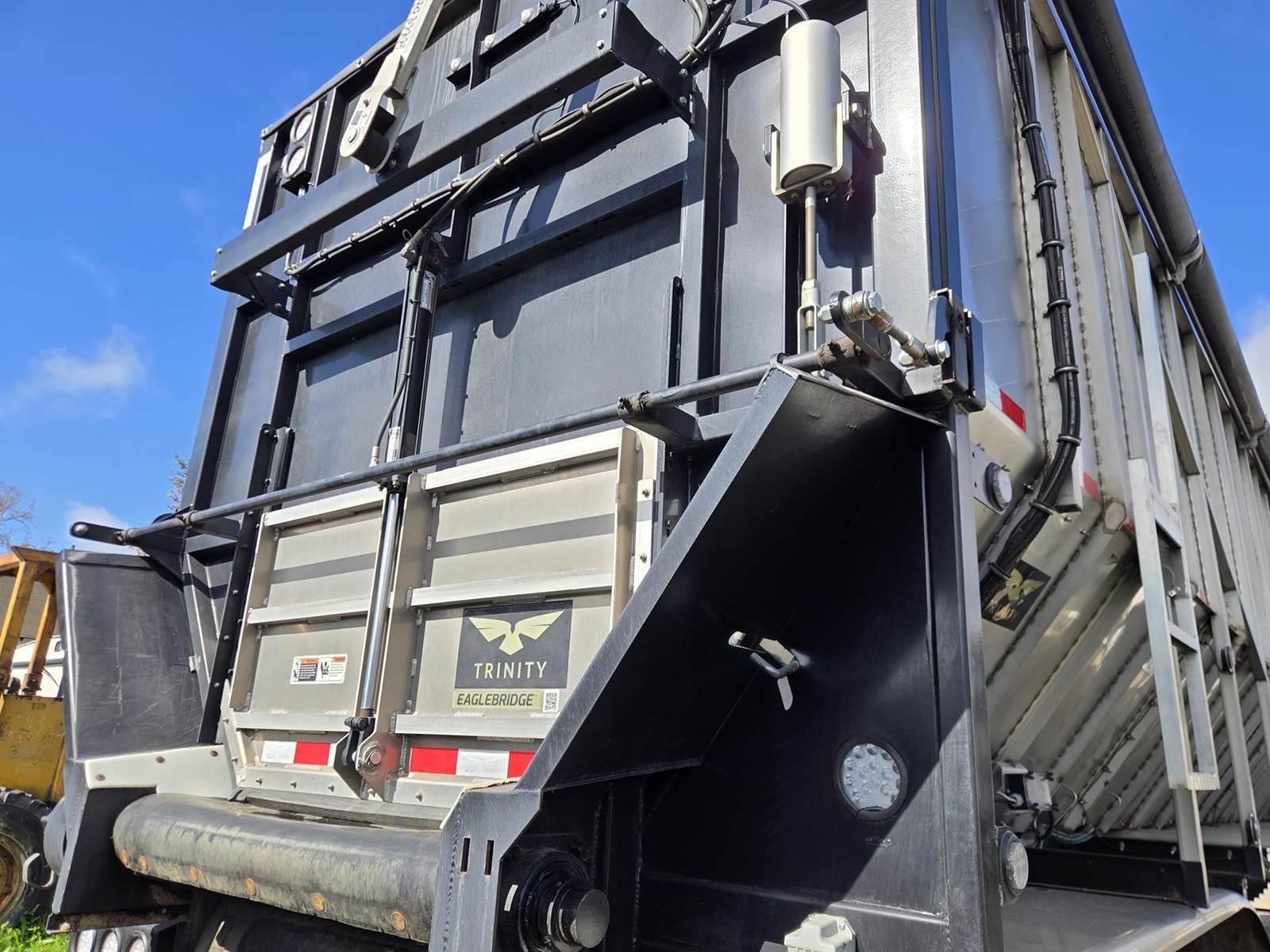

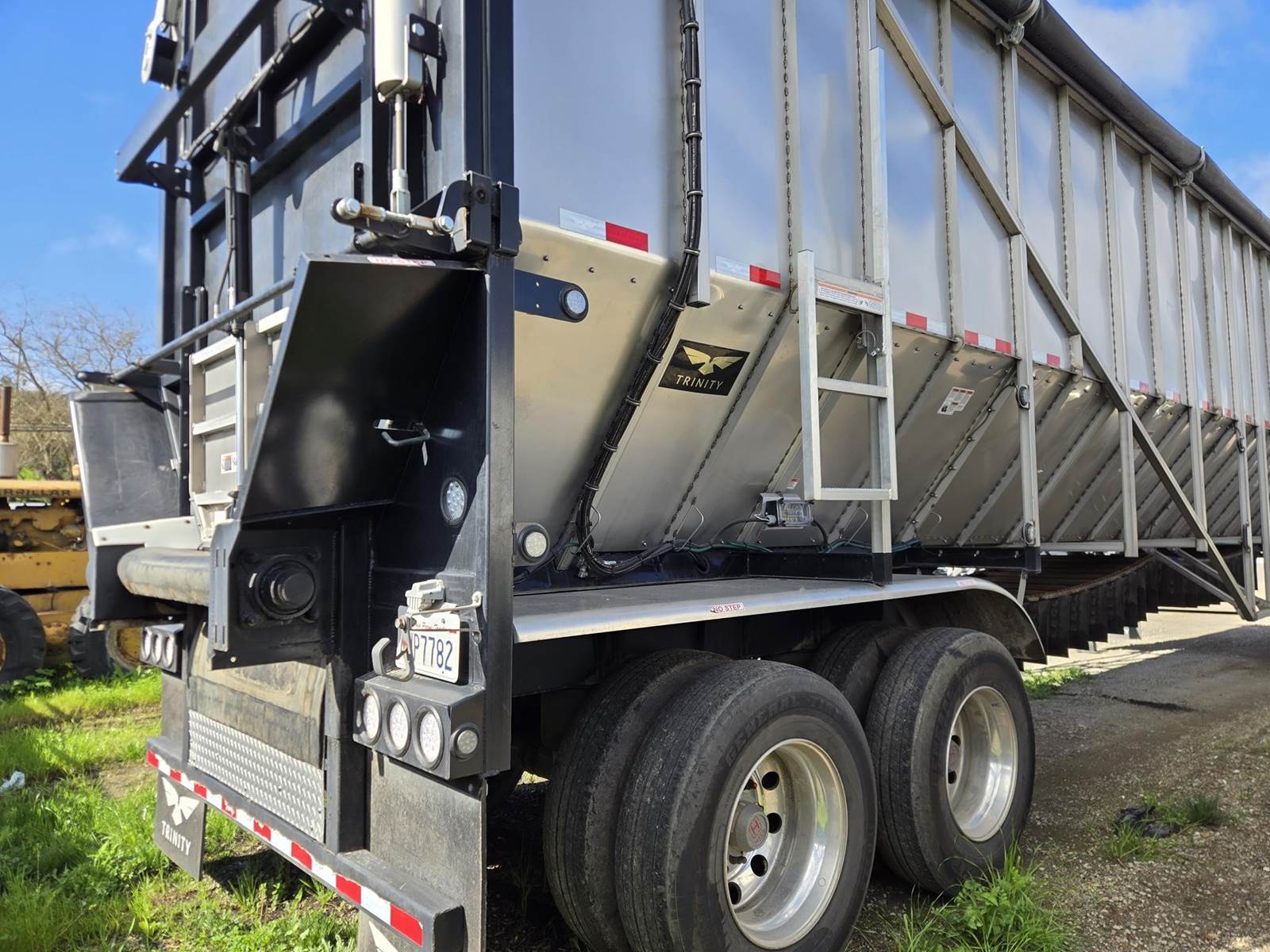

Rear Door
Door Type: Top Hinge
Lower Door Function: Slide Up
Opening Function: Hydraulic
Slide Up Door Composite: Aluminum
Upper Door Seal: Rubber P-Seal
Wet Seal: Yes

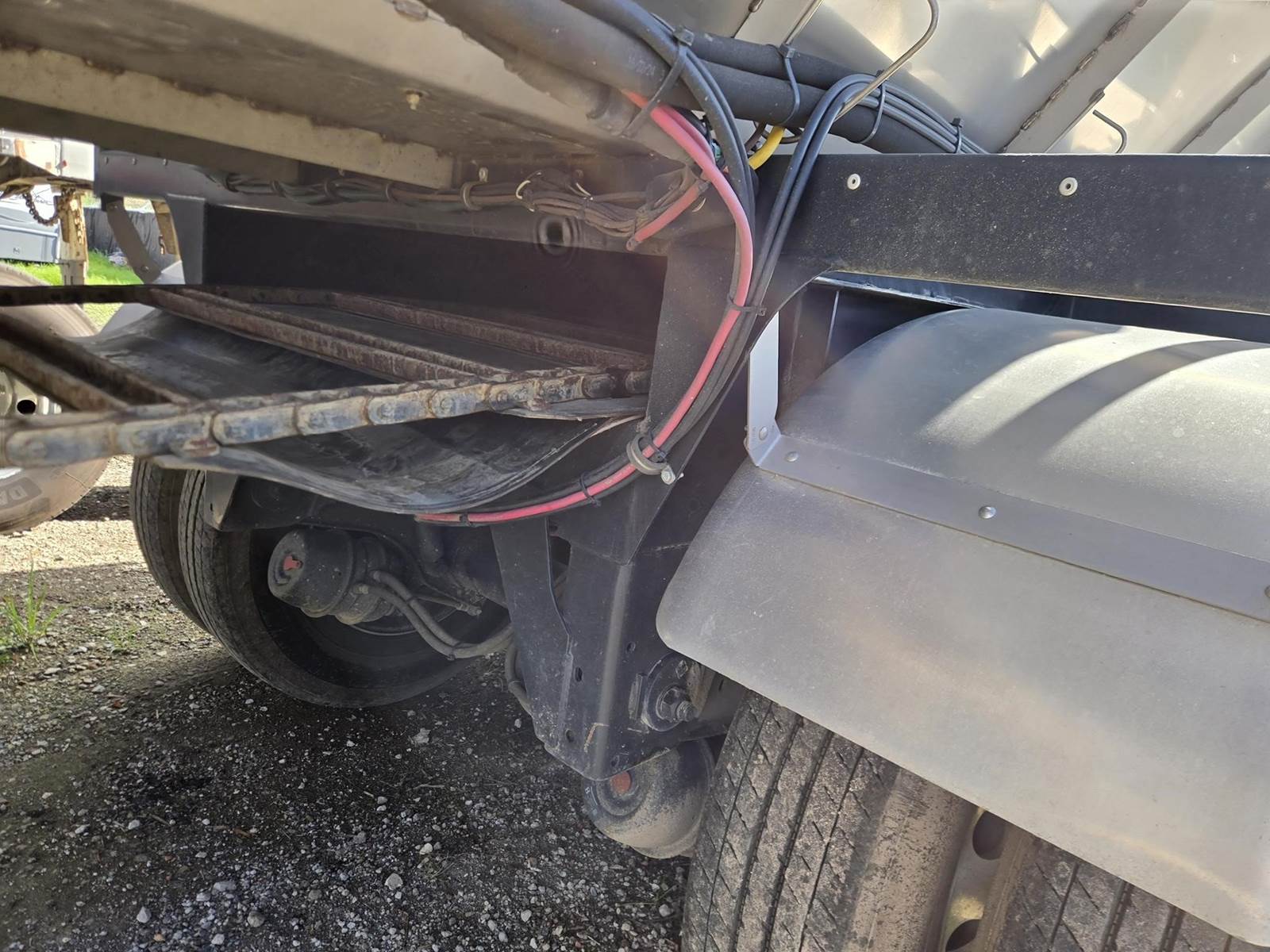

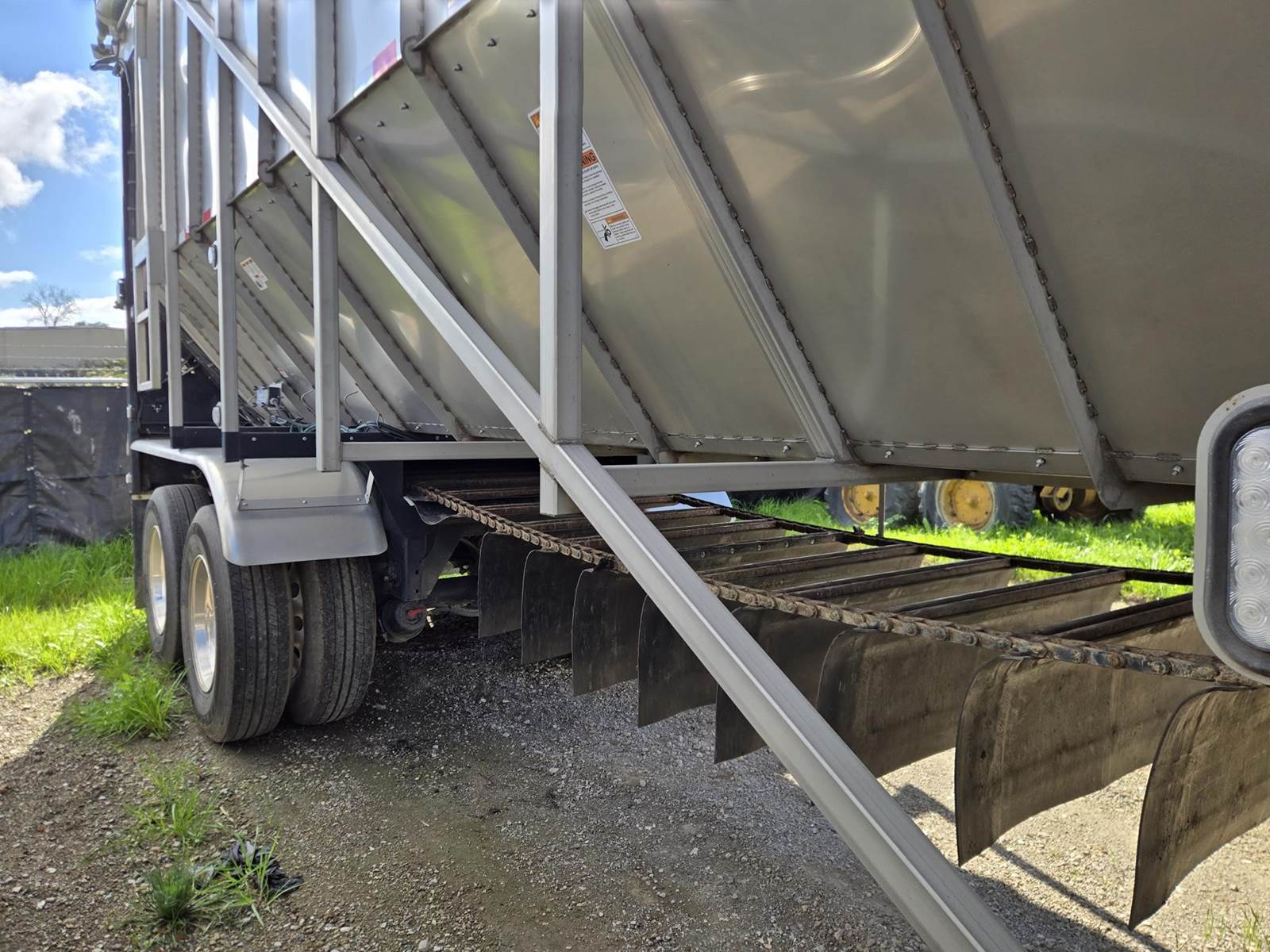

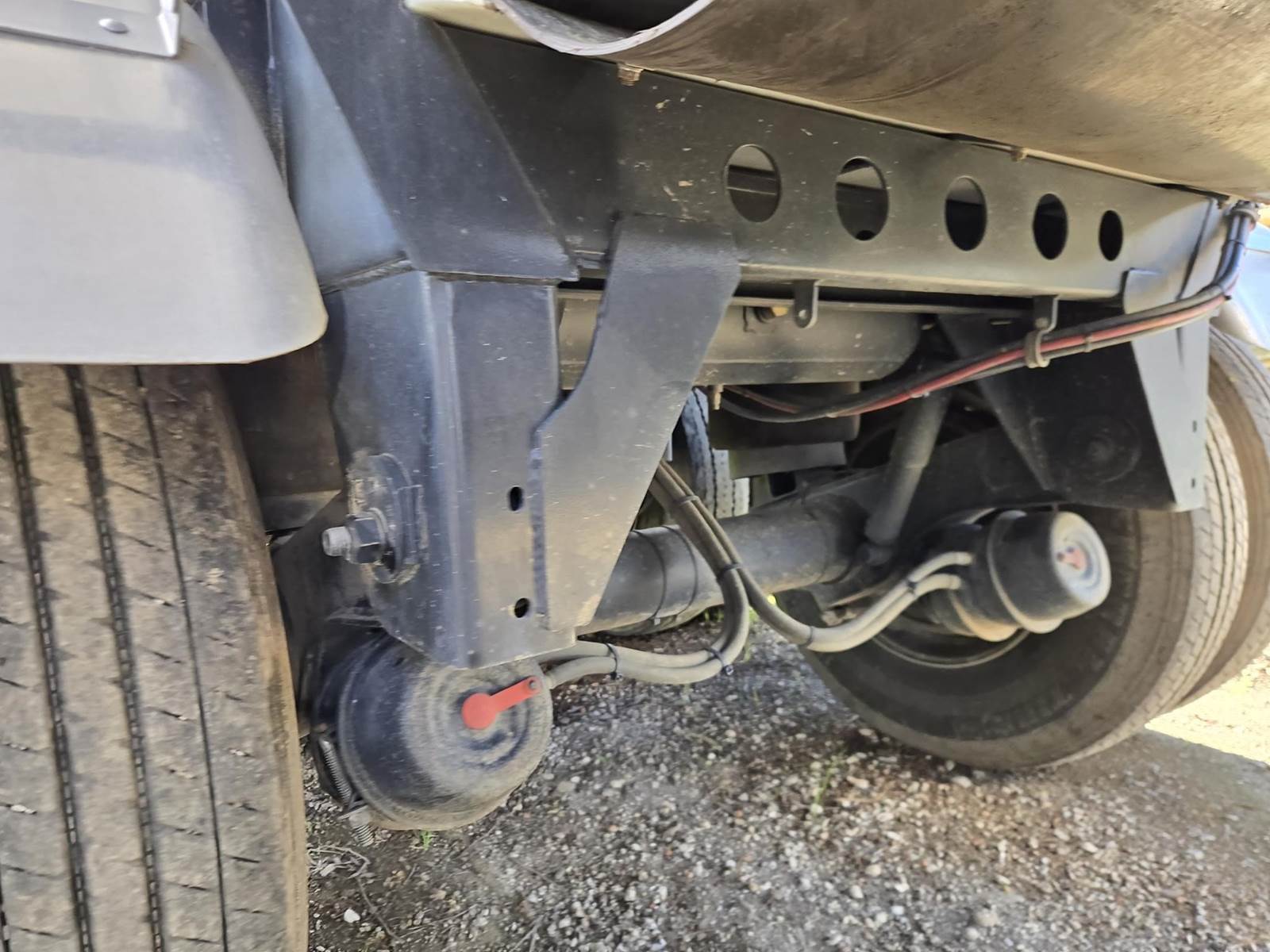

Suspension
Number of Axles: 2
Overall Spread: 49"
Suspension Type: 23K Air Ride Suspension
Brake Type: Fused Brake Drums
Front Axle:
AANT23K Narrow Tower Non Lift Axle (HXL5)
Rear Axle:
AANT23K Narrow Tower Non Lift Axle (HXL5)
Suspension Frame Height: Tall Mount
Axle Ahead: 18"
Rear Bumper Options: Rear Impact Guard
Diamond Plate Dust Shield: Center Only
Rock Shed Plate: Yes
Suspension Options
Load Scale: Std. Hendrickson Enclosed Gauge (PSI)
Dump Valve: Integrated

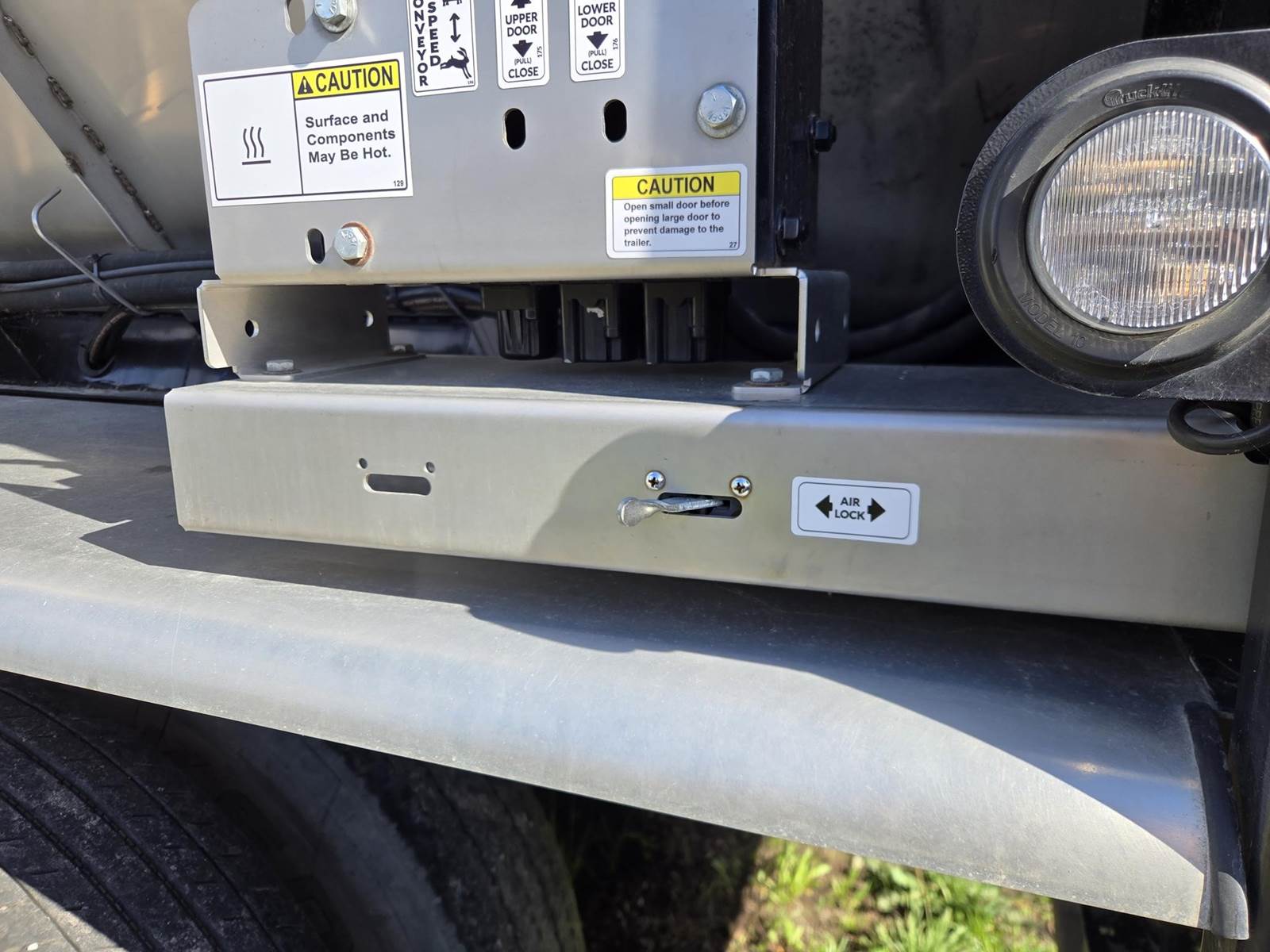

Scale/Dump Mounted: Above Rear Fender – Roadside
ABS Type: Meritor Wabco 4S2M
Slack Adjuster Type: Automatic

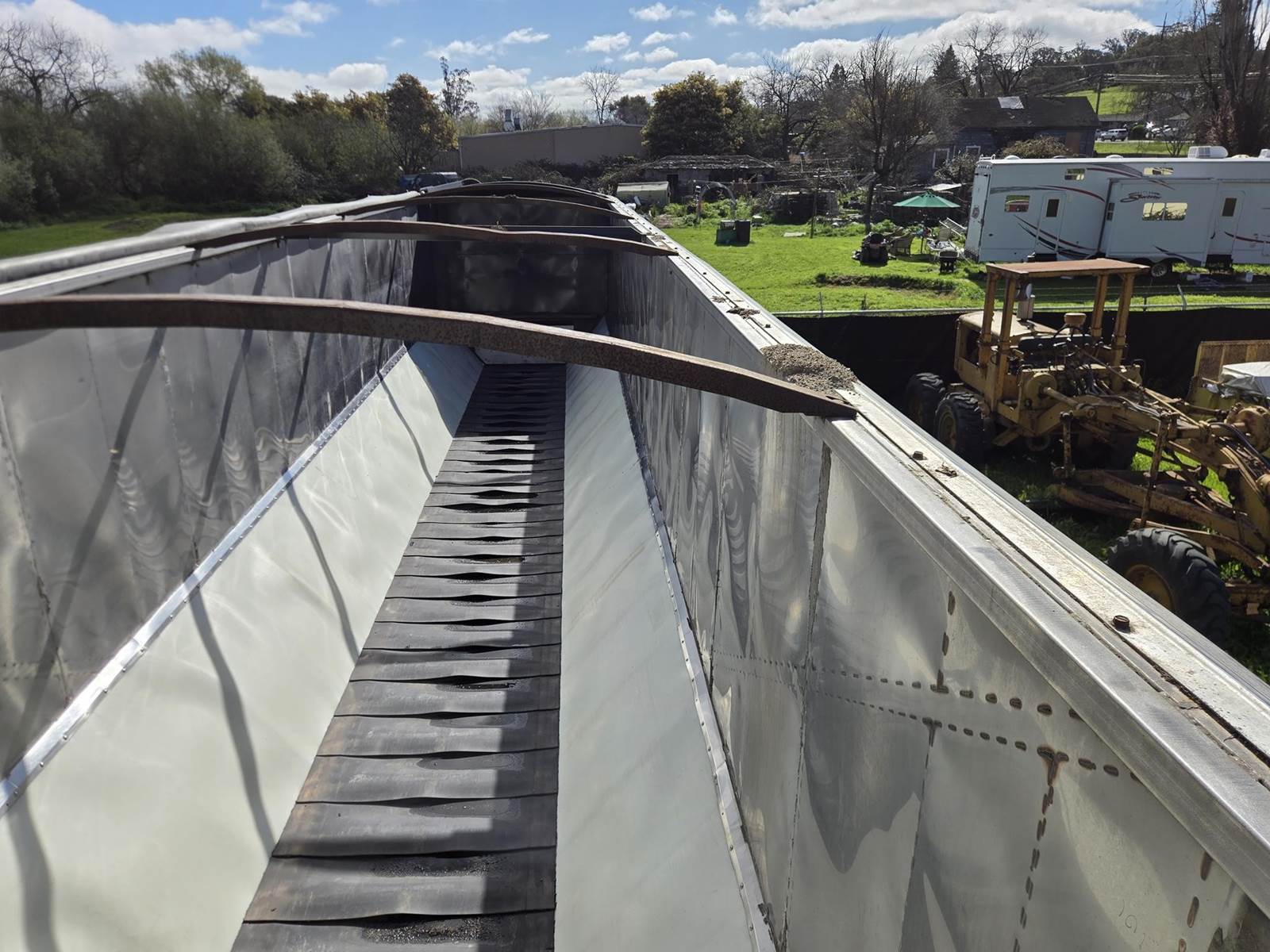

Full Width 3/16 HMW Belt Return

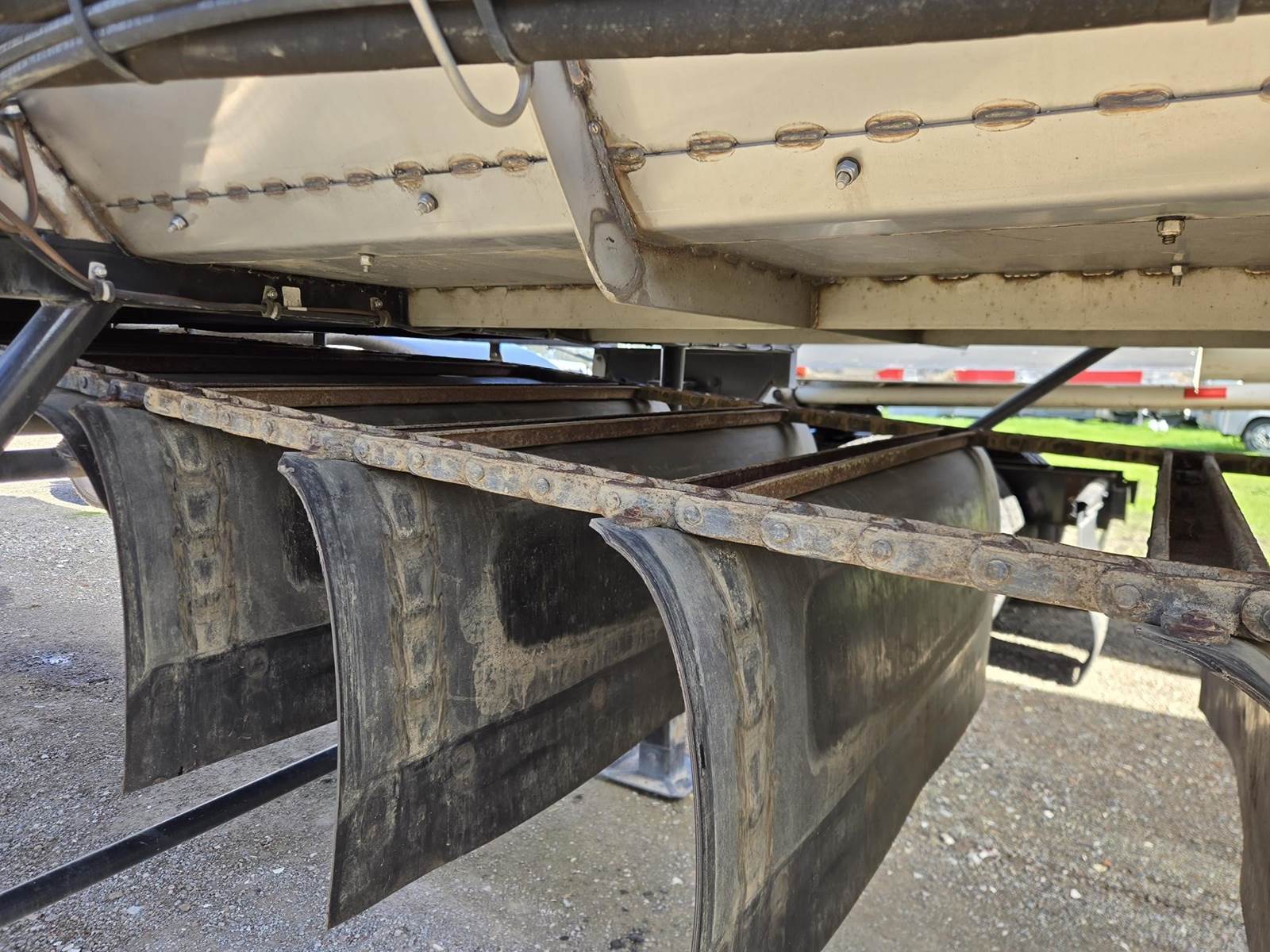

Fender and Mud Flap
Fender Type: Smooth Mill Finish Aluminum
Mud Flap Type: Standard Mud Flaps
Front Mud Flap: On Front Fenders (2 Flaps)
Unload System
PTO Unload: Yes
Male Coupler: Pioneer Style (1")
Female Coupler: Pioneer Style (1")
Return Side Coupler: Female Coupler
Couplers Mounted: On Hoses to Tractor

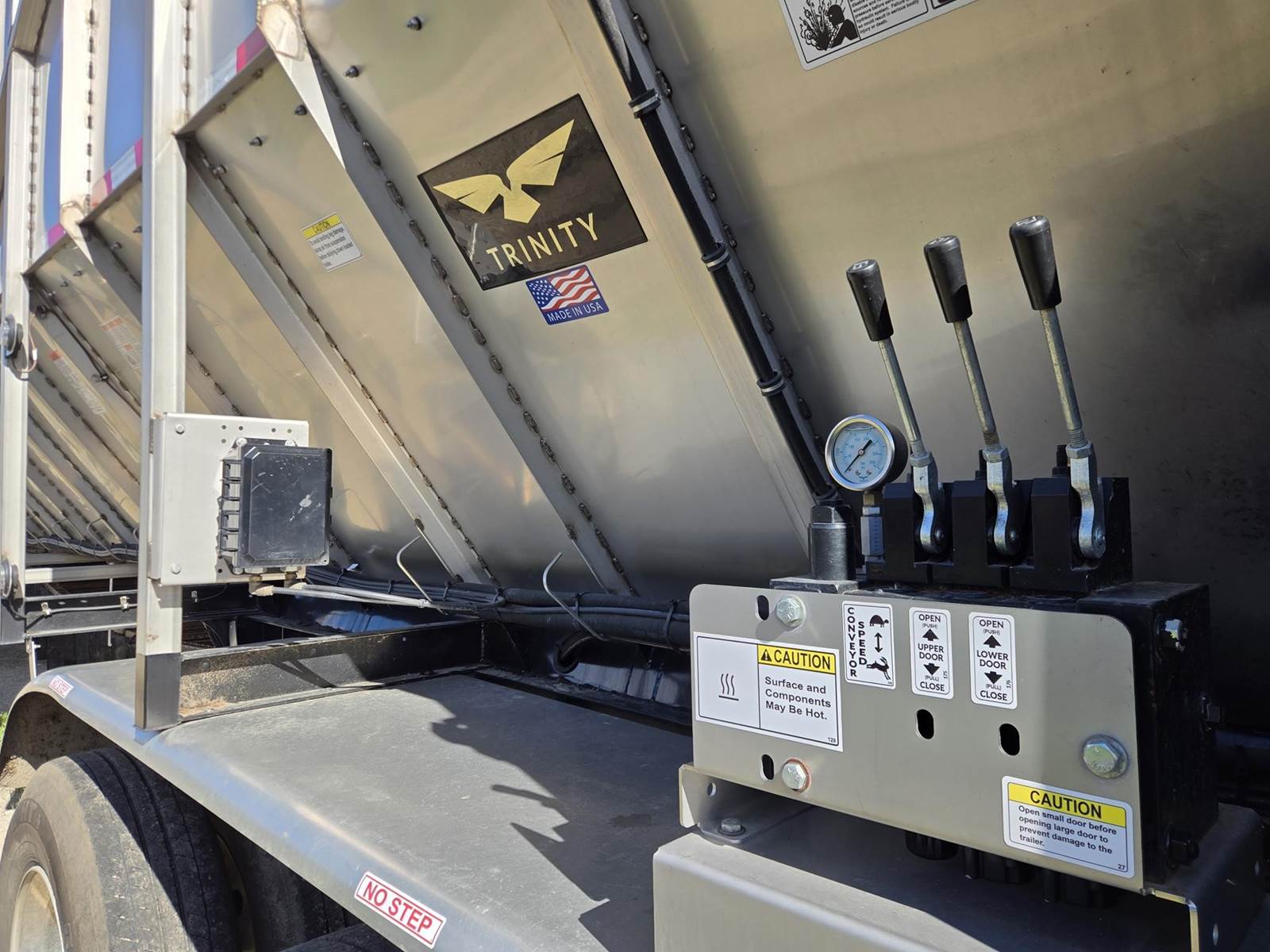

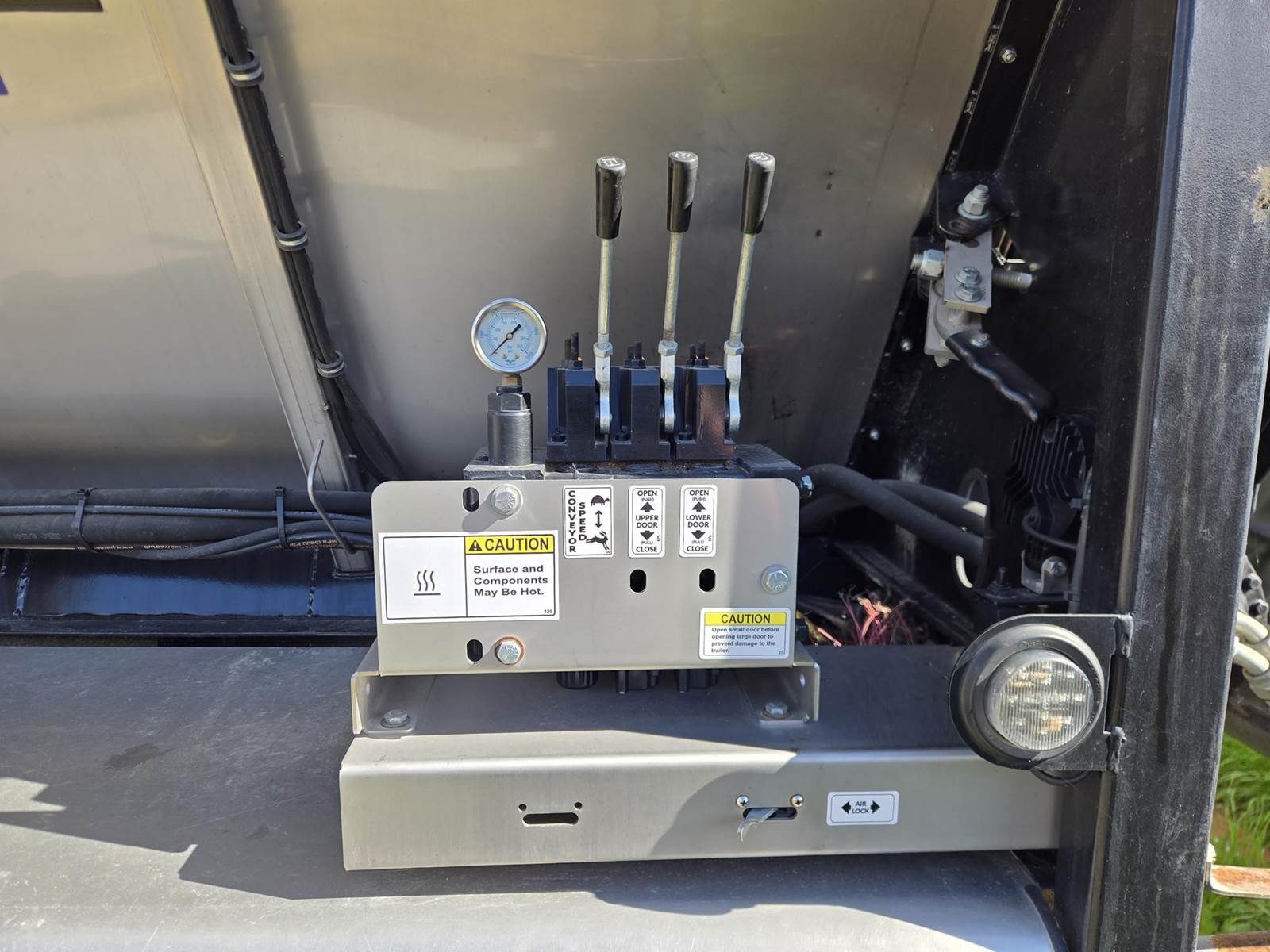

Hyd. Valves: LX6 Manifold
Hyd. Motor Size: 240
Planetary: Model 9
Hydraulic Oil: Standard

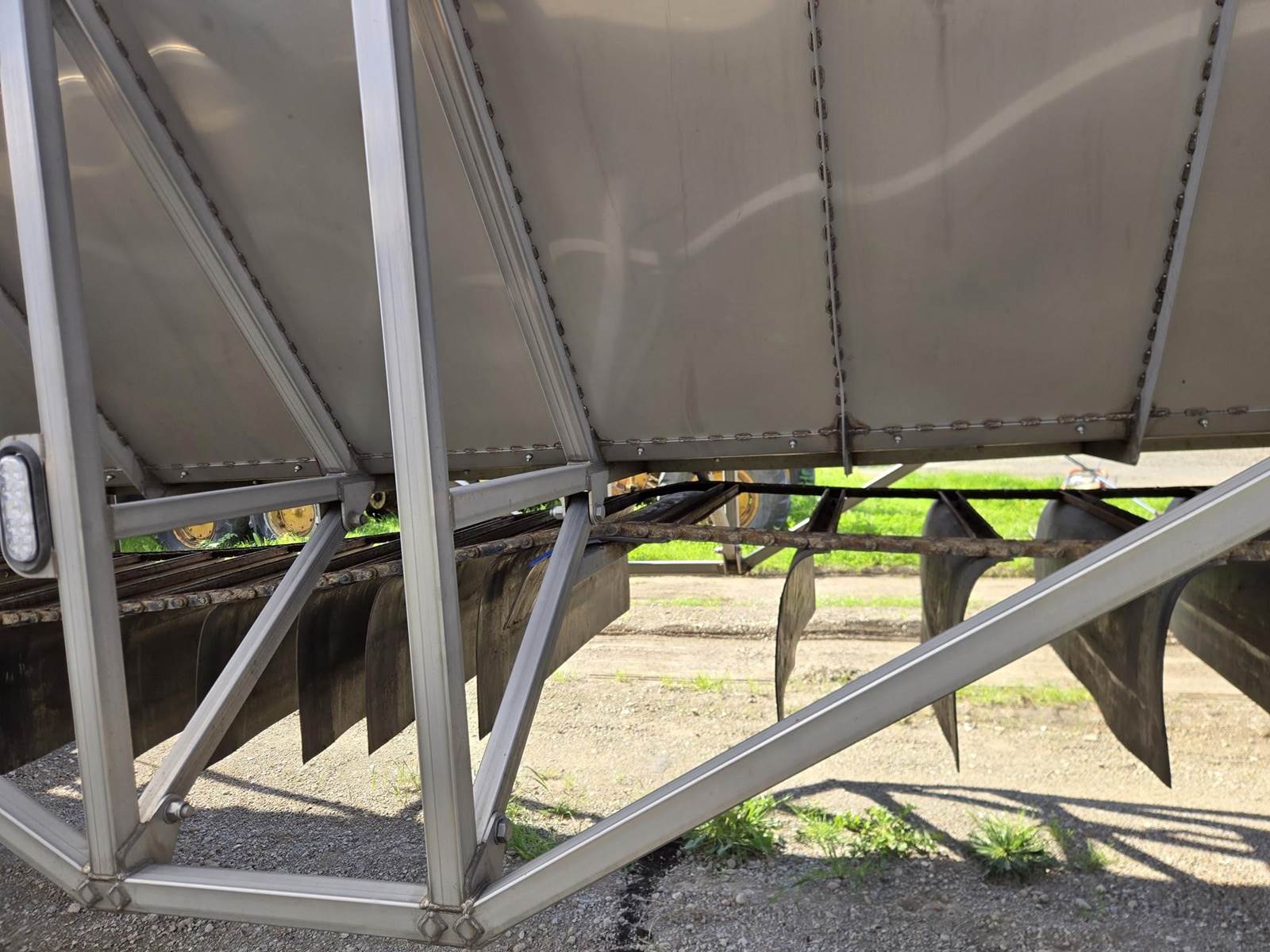

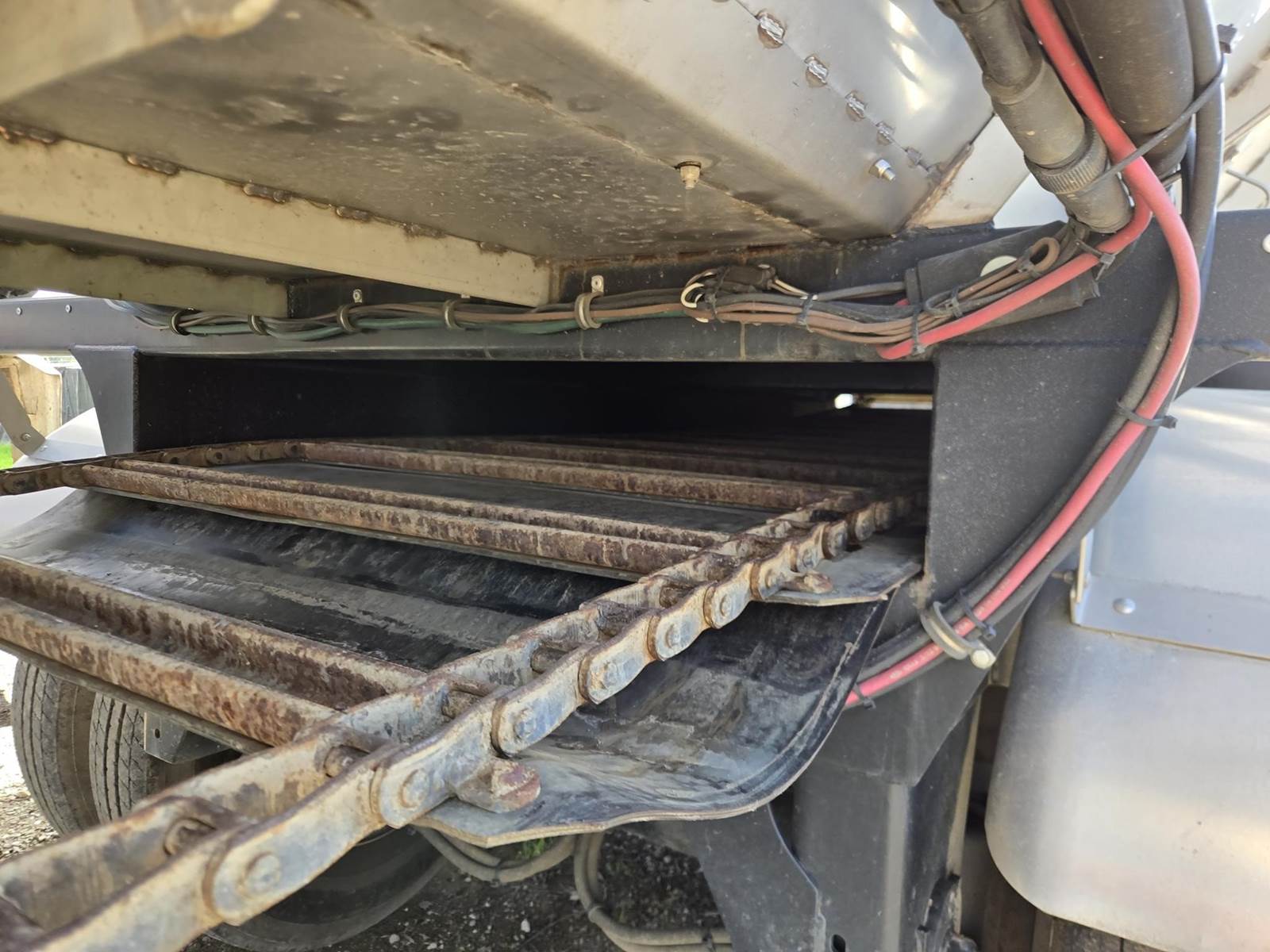

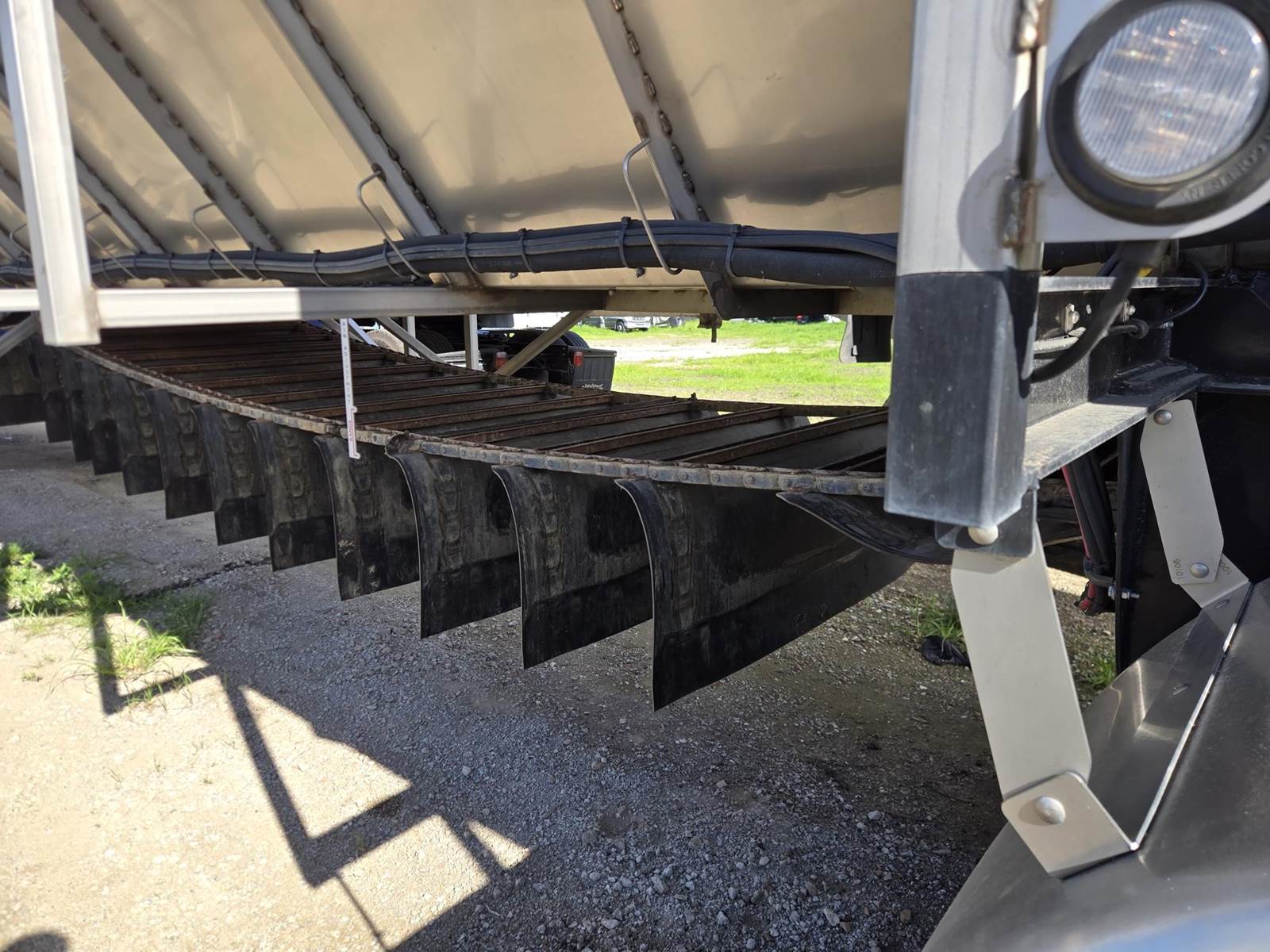

Number of Chains: 2
Chain Type: AL88C – Heavy Duty
Chain Bar Type: Formed Edge Bar

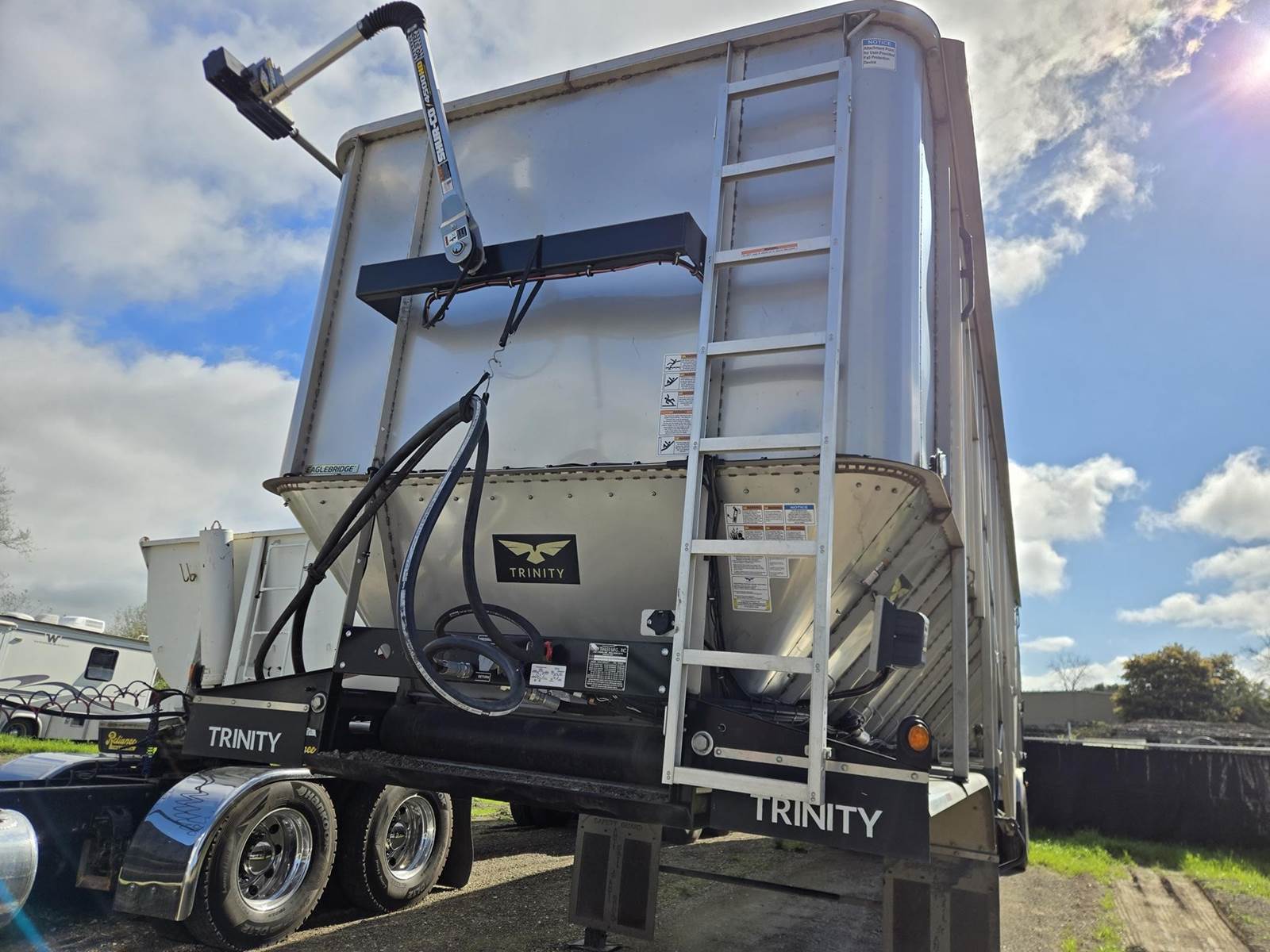

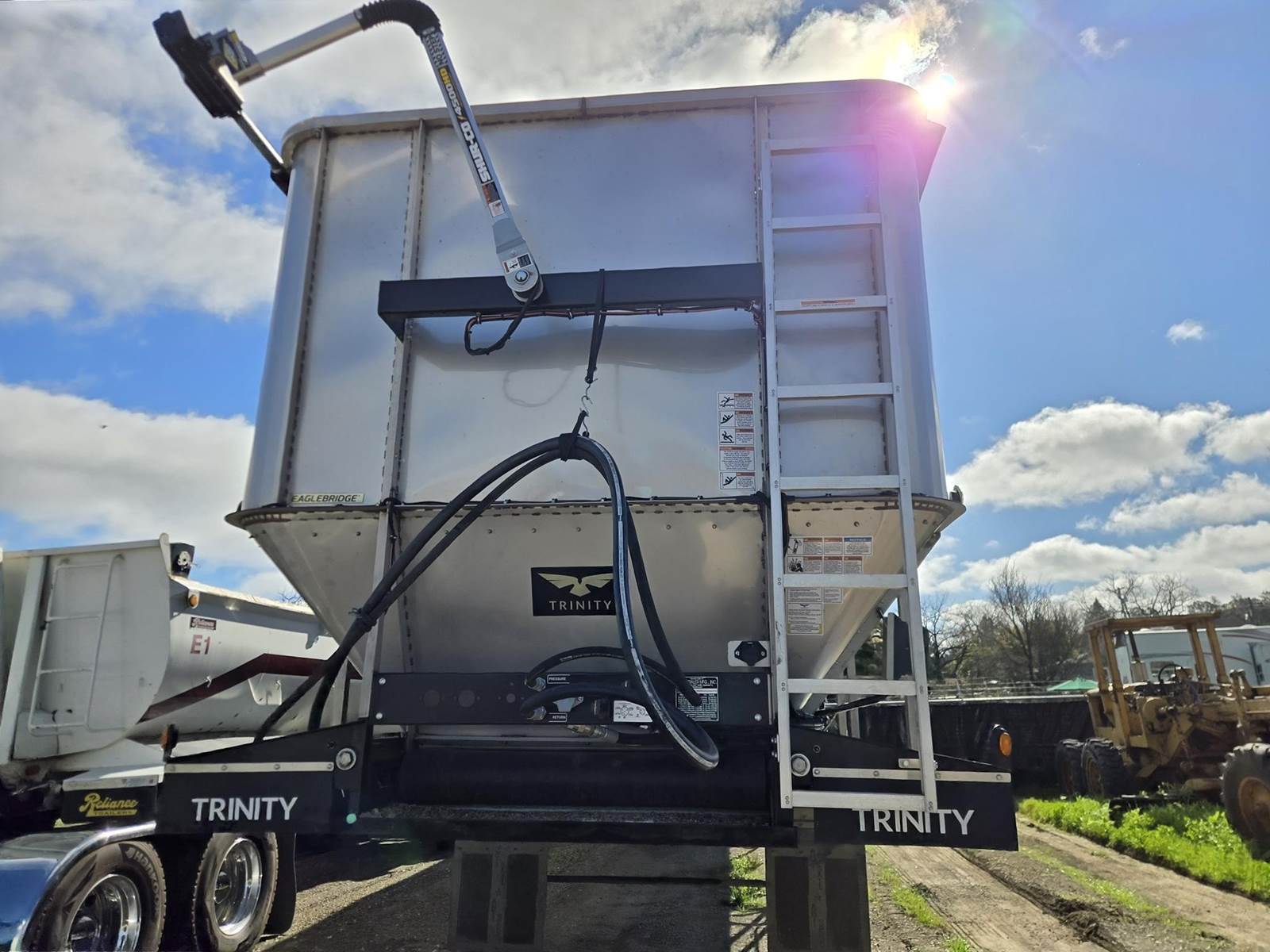

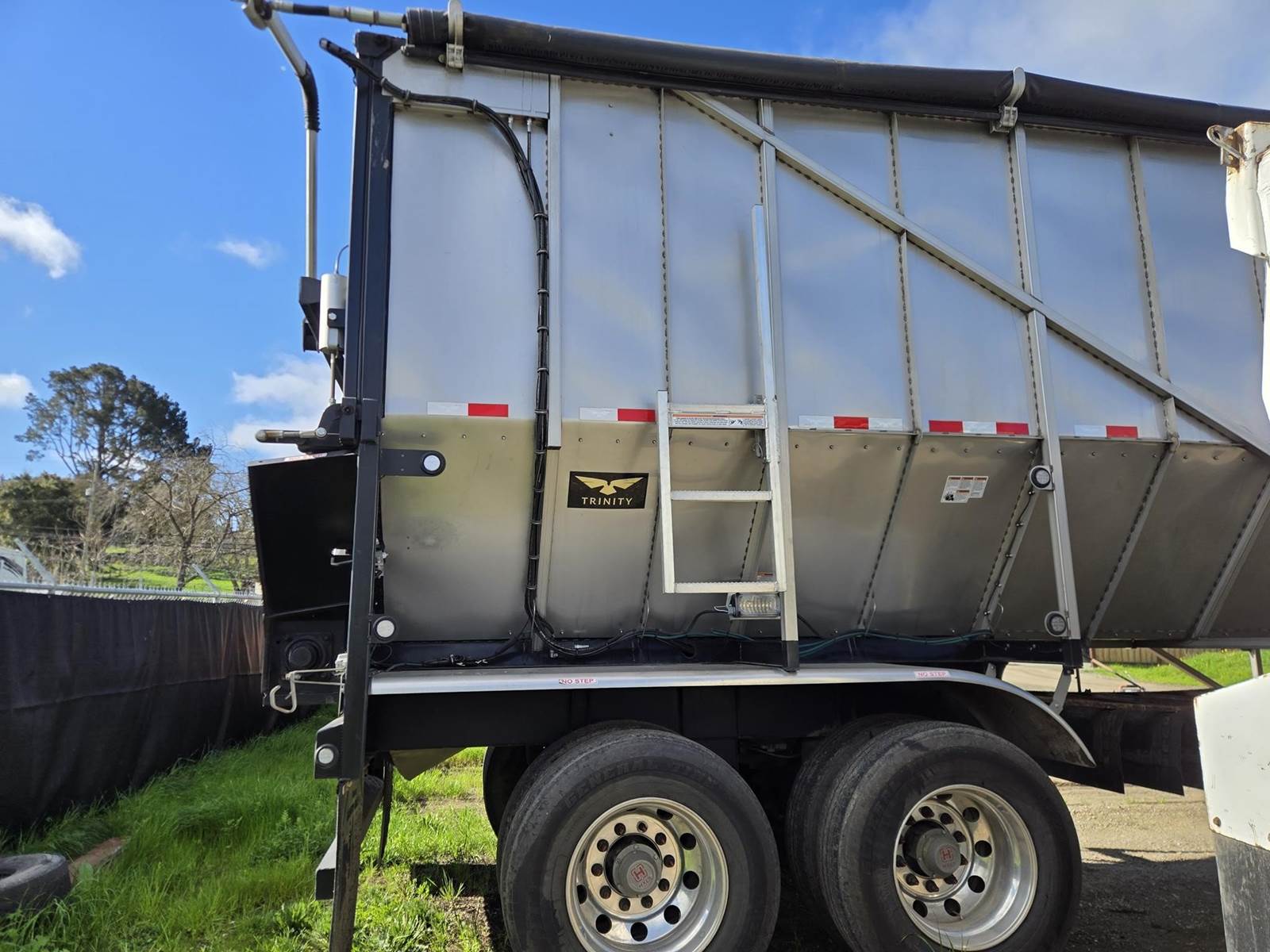

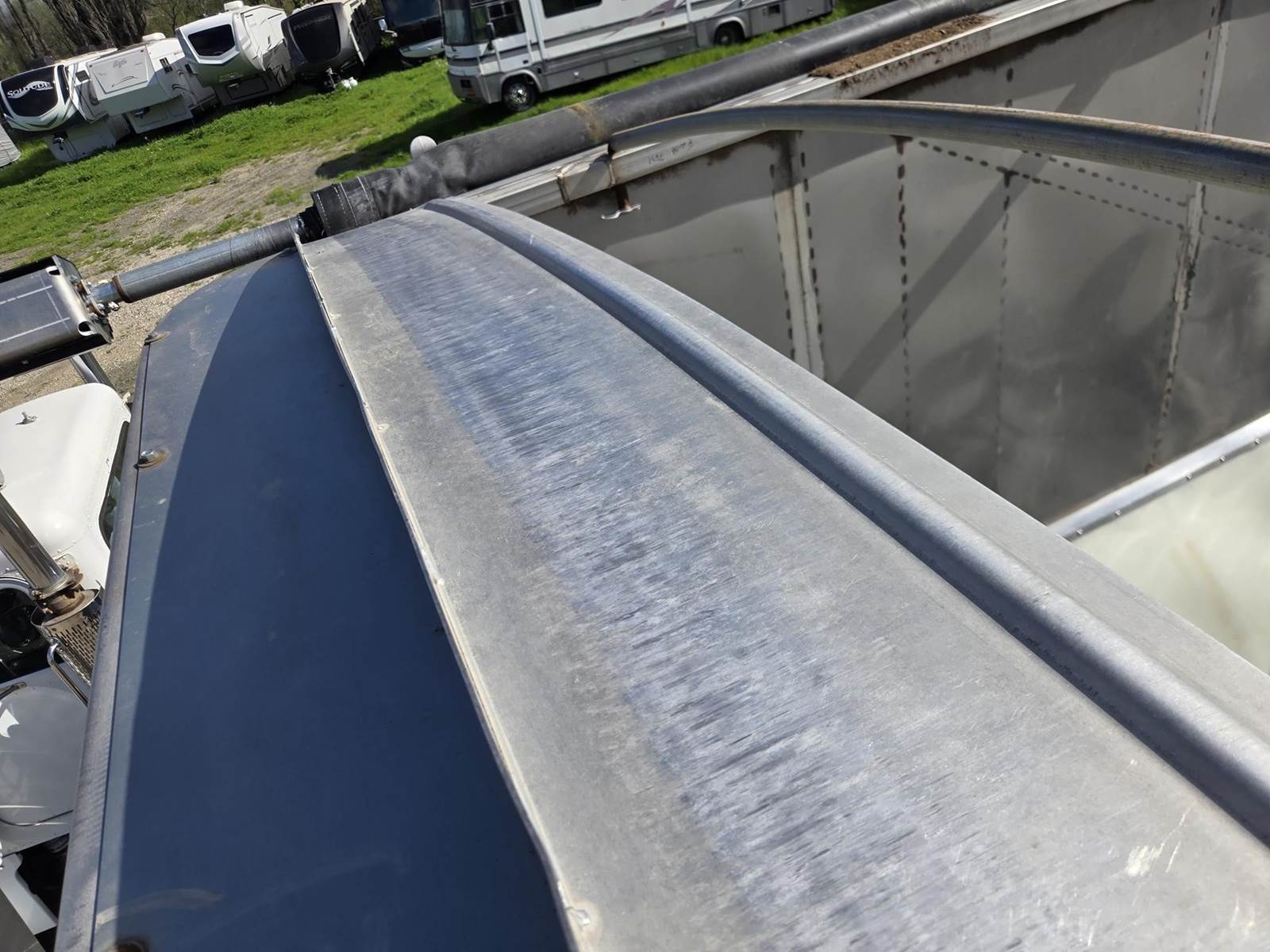

Tarp System
Tarp Style: Shur-Loc Style

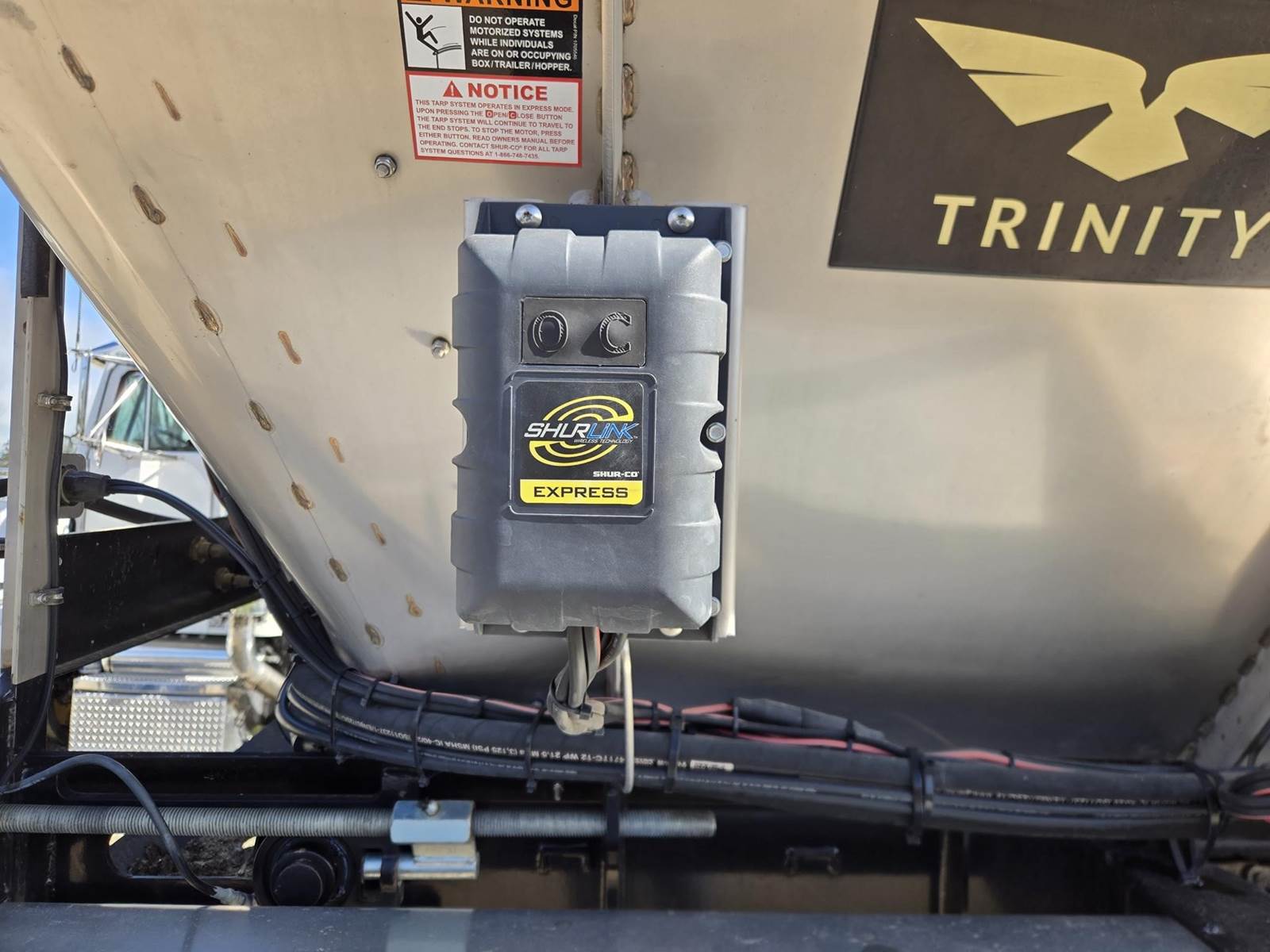

Tarp Operation: Electric with Remote
Tarp Material: 22 oz
Tarp Primary Color: Black
Primary Bow Style: Radius Tarp Bows
Primary Bow Quantity: 9

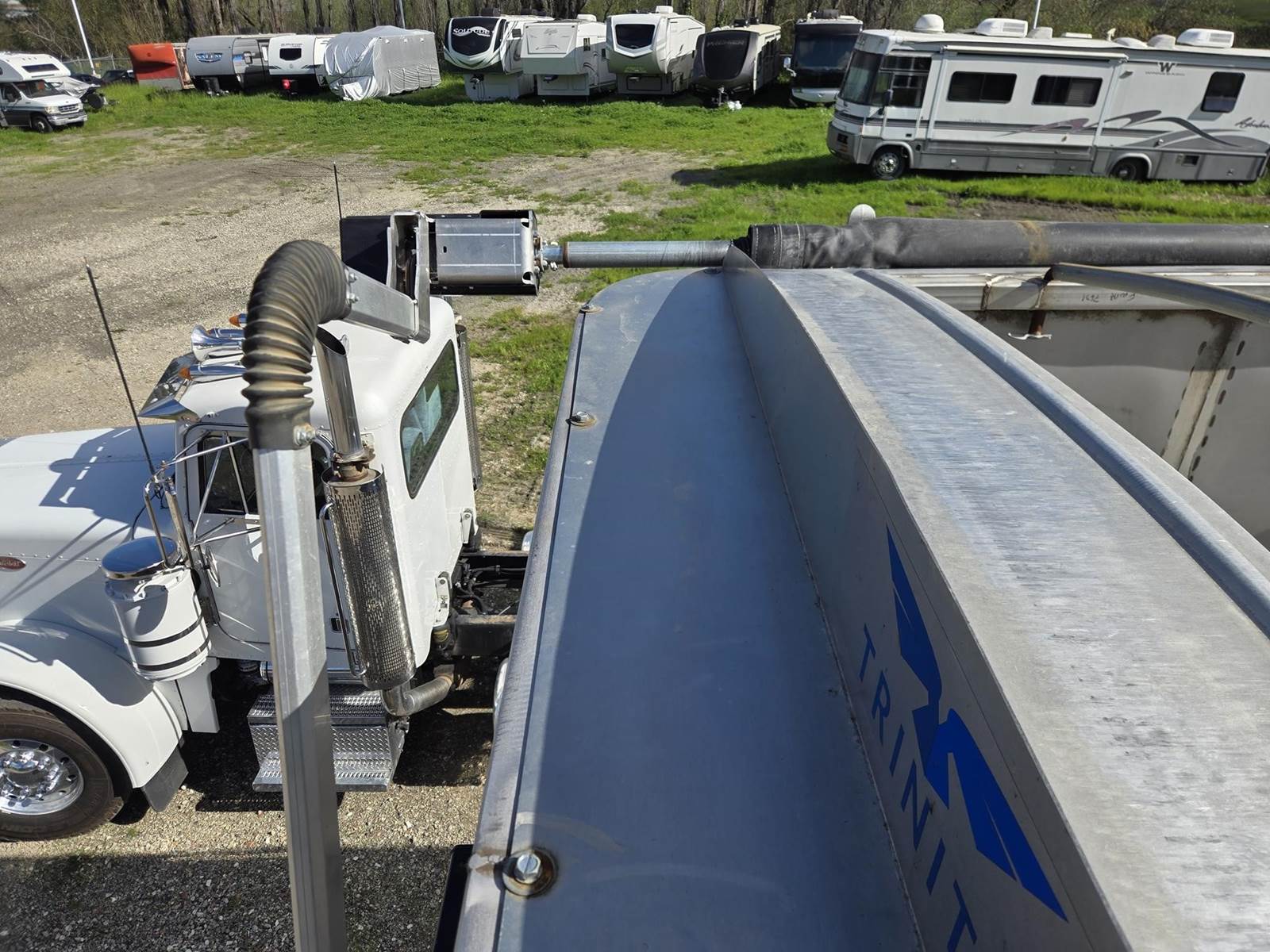

Front Cap: Aluminum
Rear Cap: Fabric
Tarp Stops: 6" Offset
Tarp Latch Plate: Top Mount (Standard)

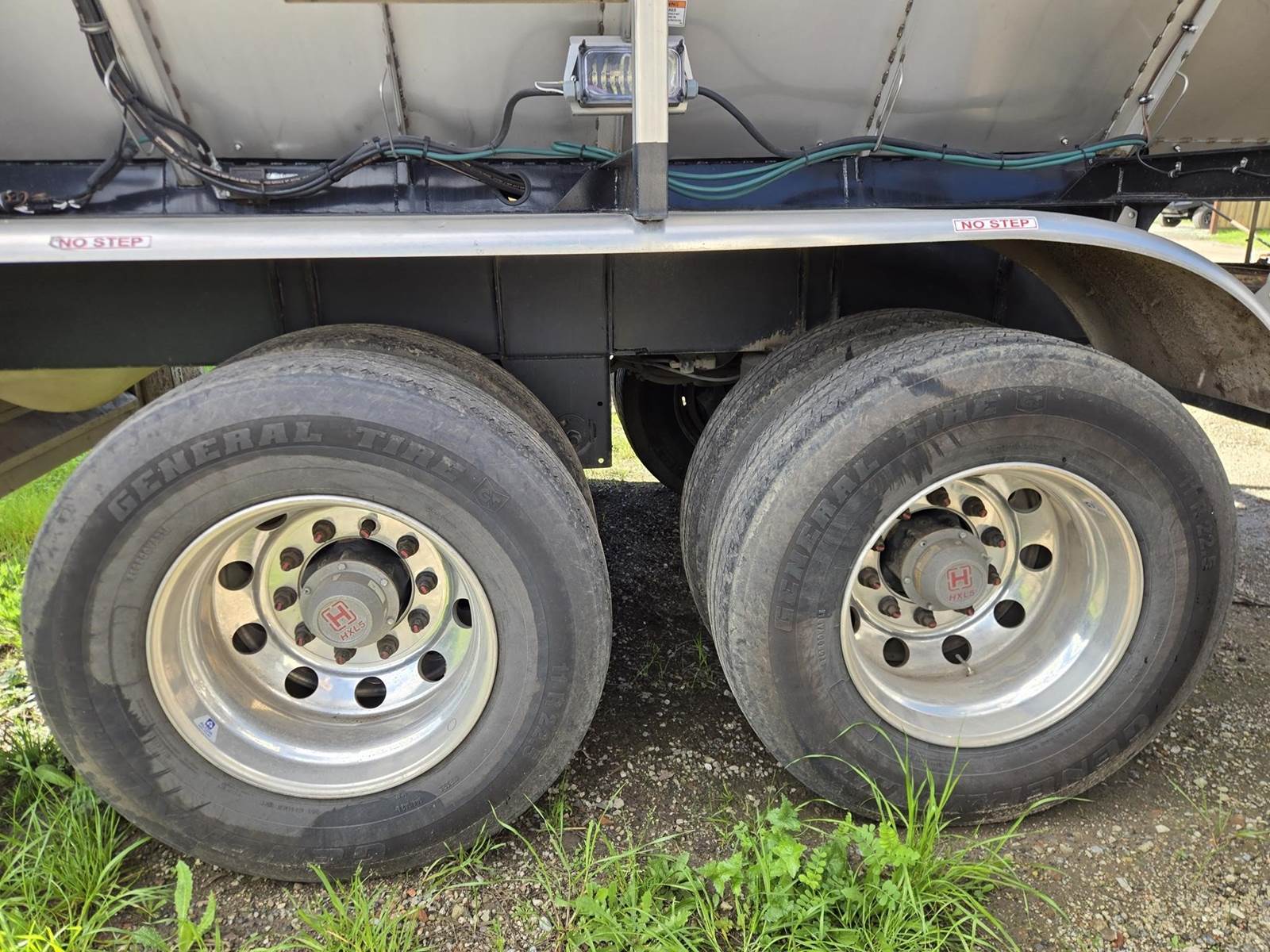

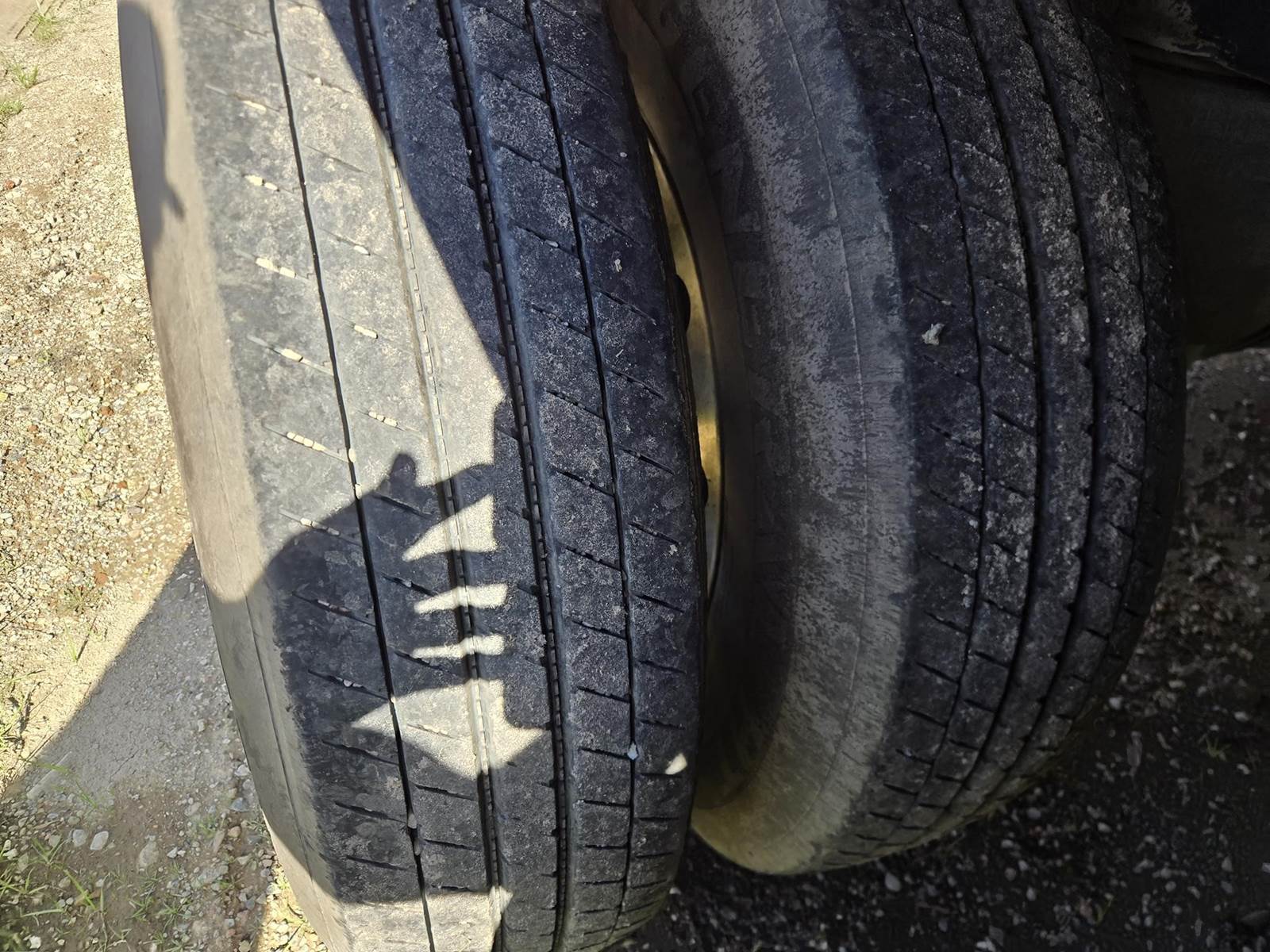

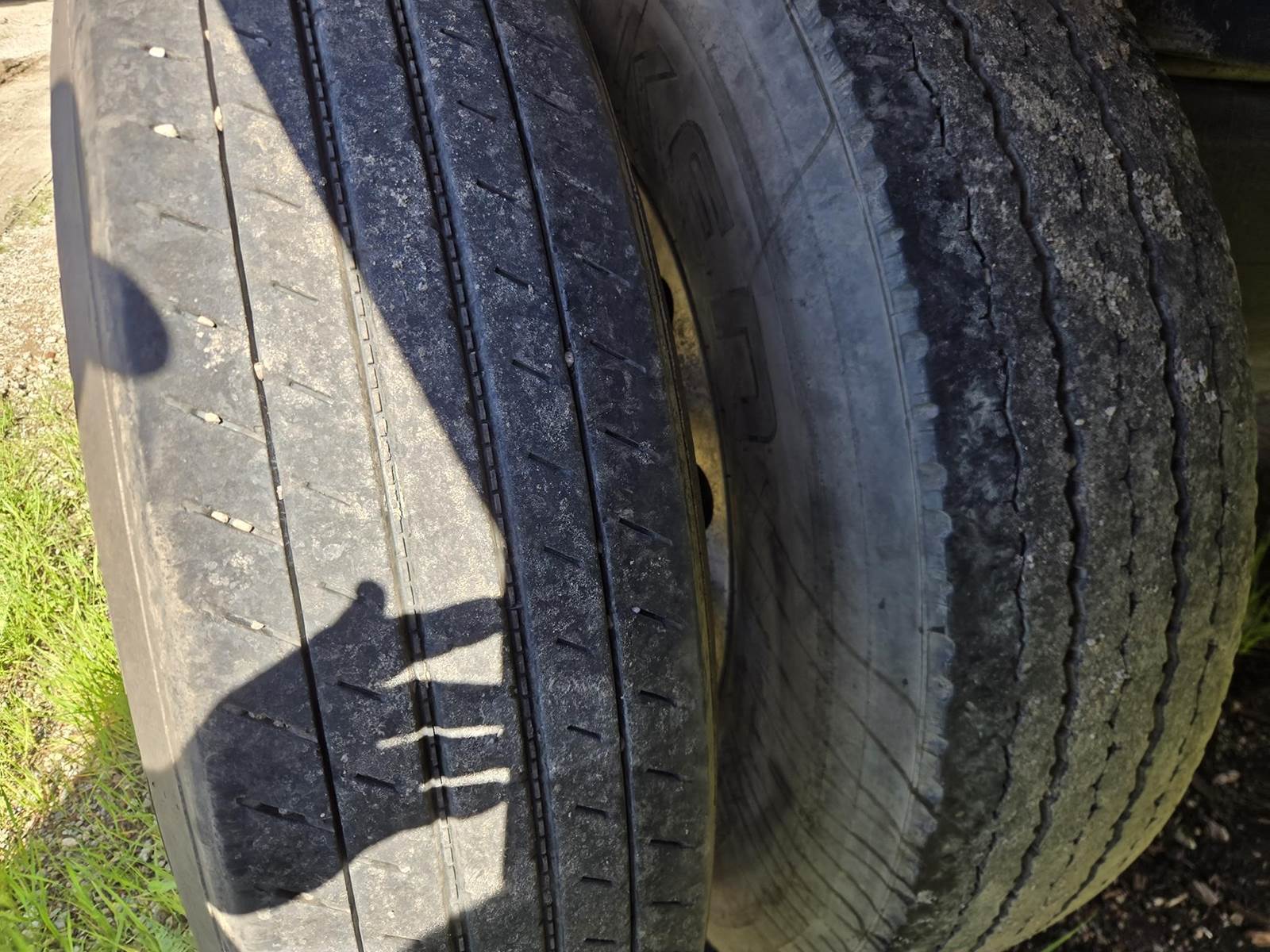

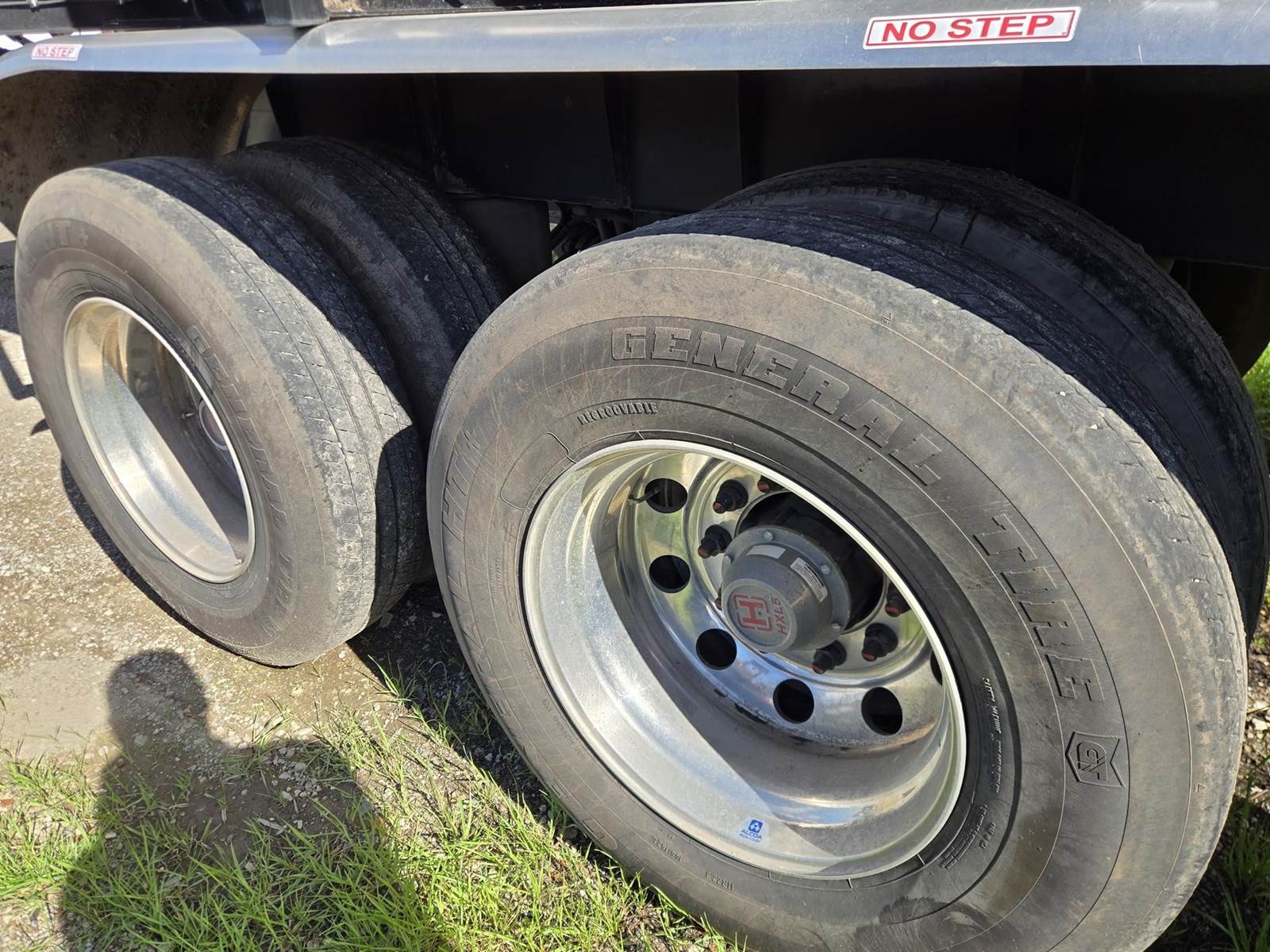

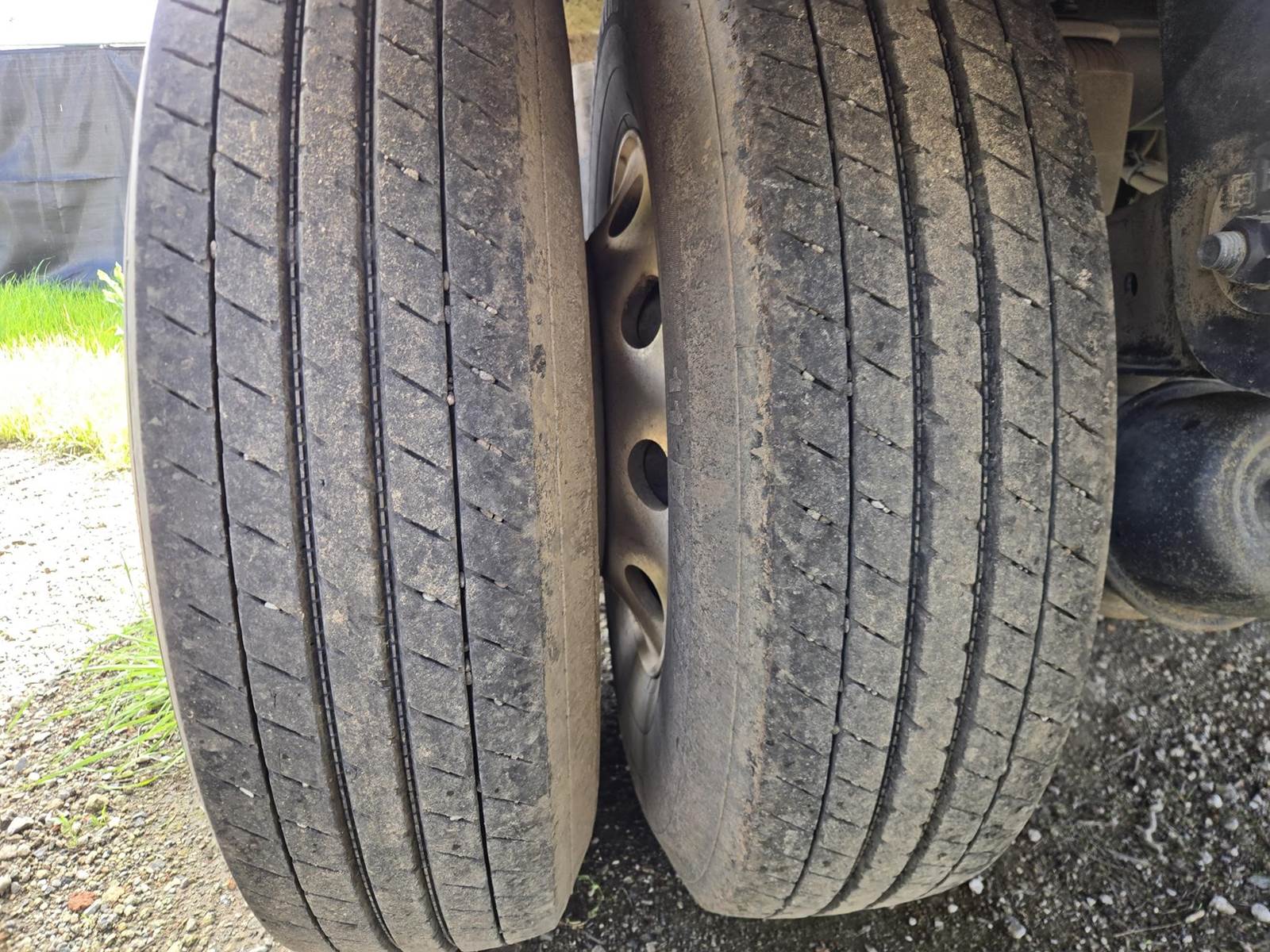

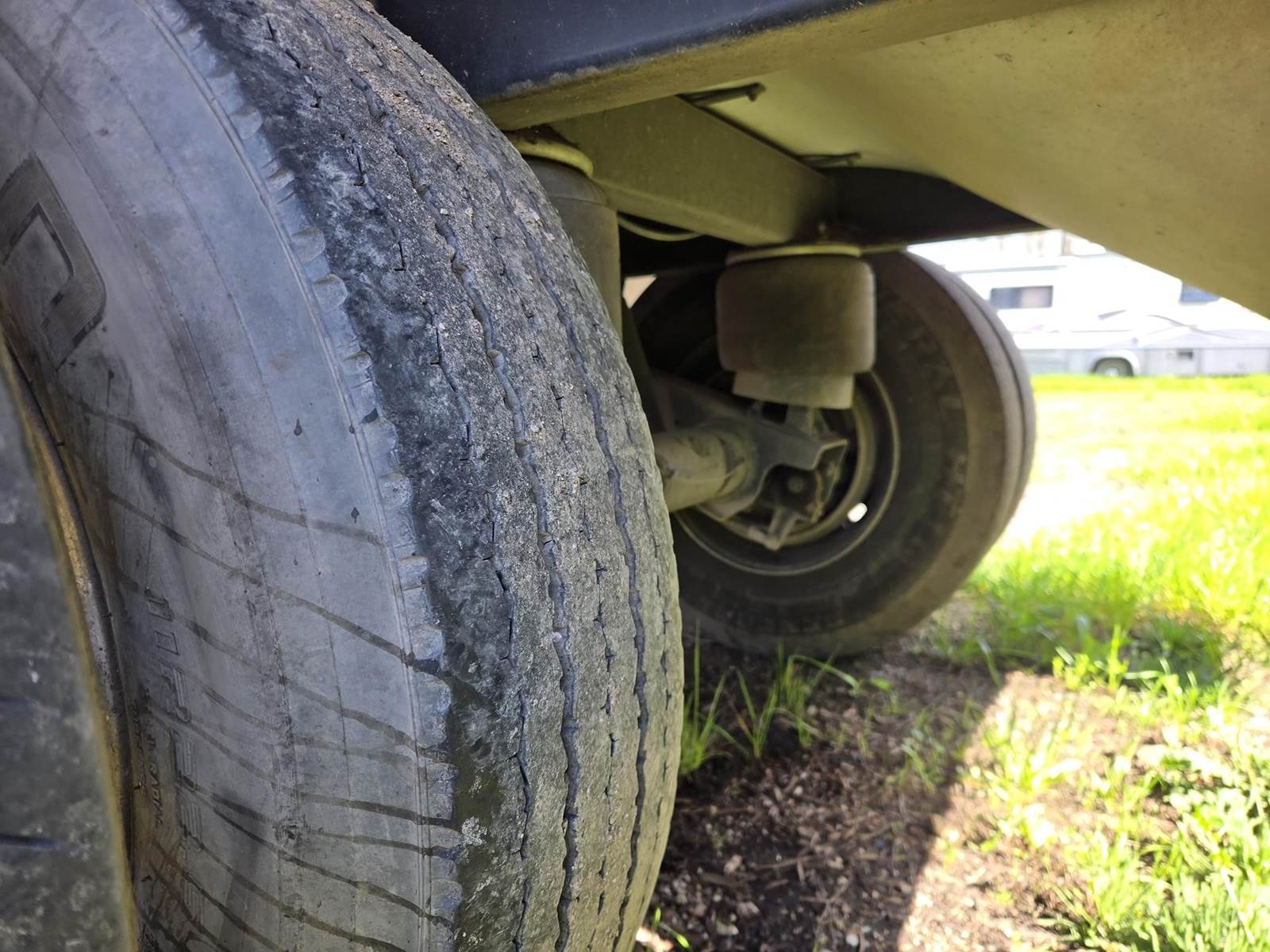

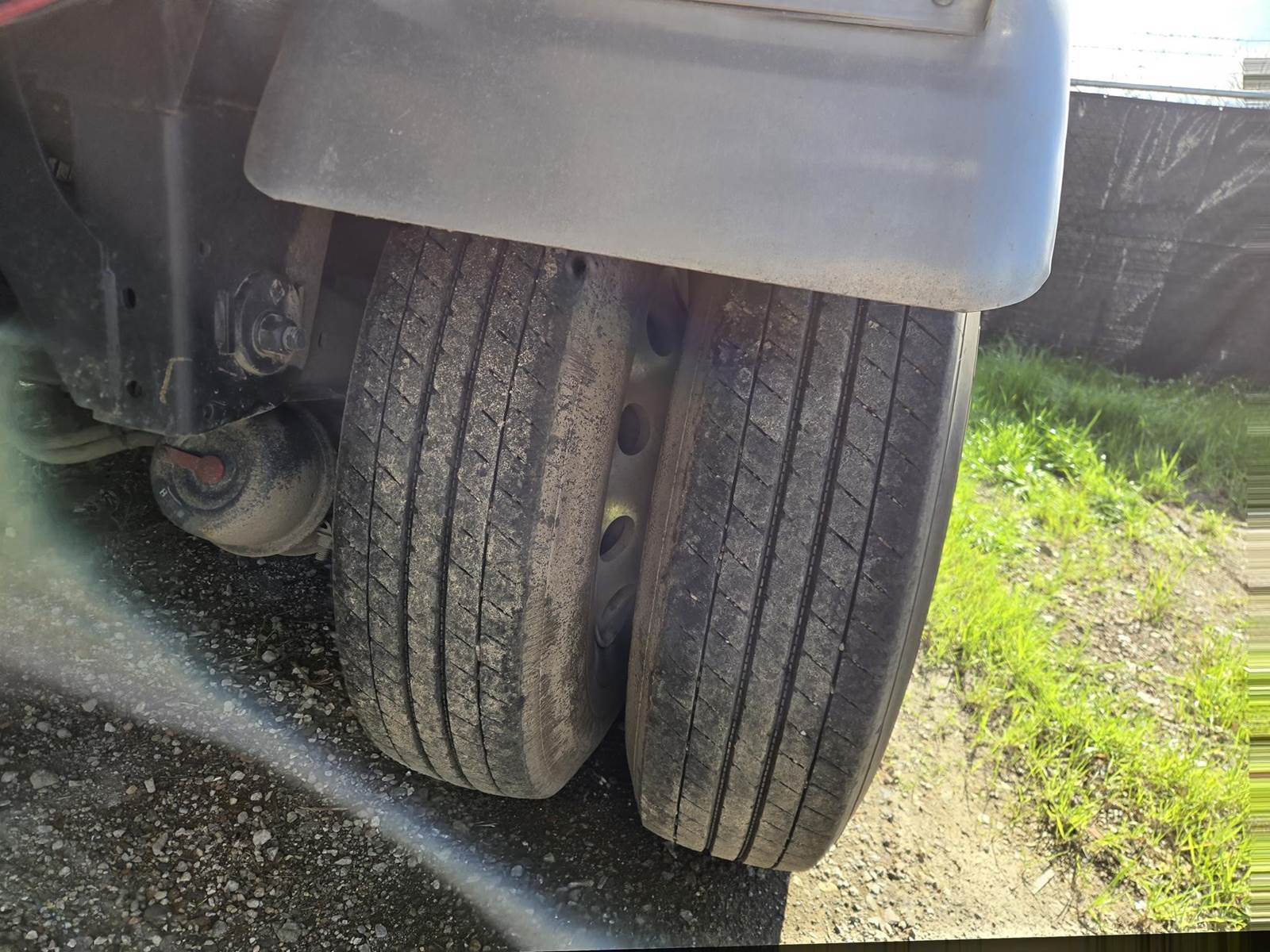

Tires and Wheels
Tires and Wheel Style: Duals
Tire Size:
11R22.5 (Tall 22)
Tire Tier/Use/Load:
Tier 2, Highway (G)
Tire Quantity: 8
Wheel Size: 8.25 × 22.5
Outside Wheel Type: Aluminum – Mill Finish
Outside Wheel Qty: 4
Inside Wheel Type: Aluminum – Mill Finish
Inside Wheel Qty: 4

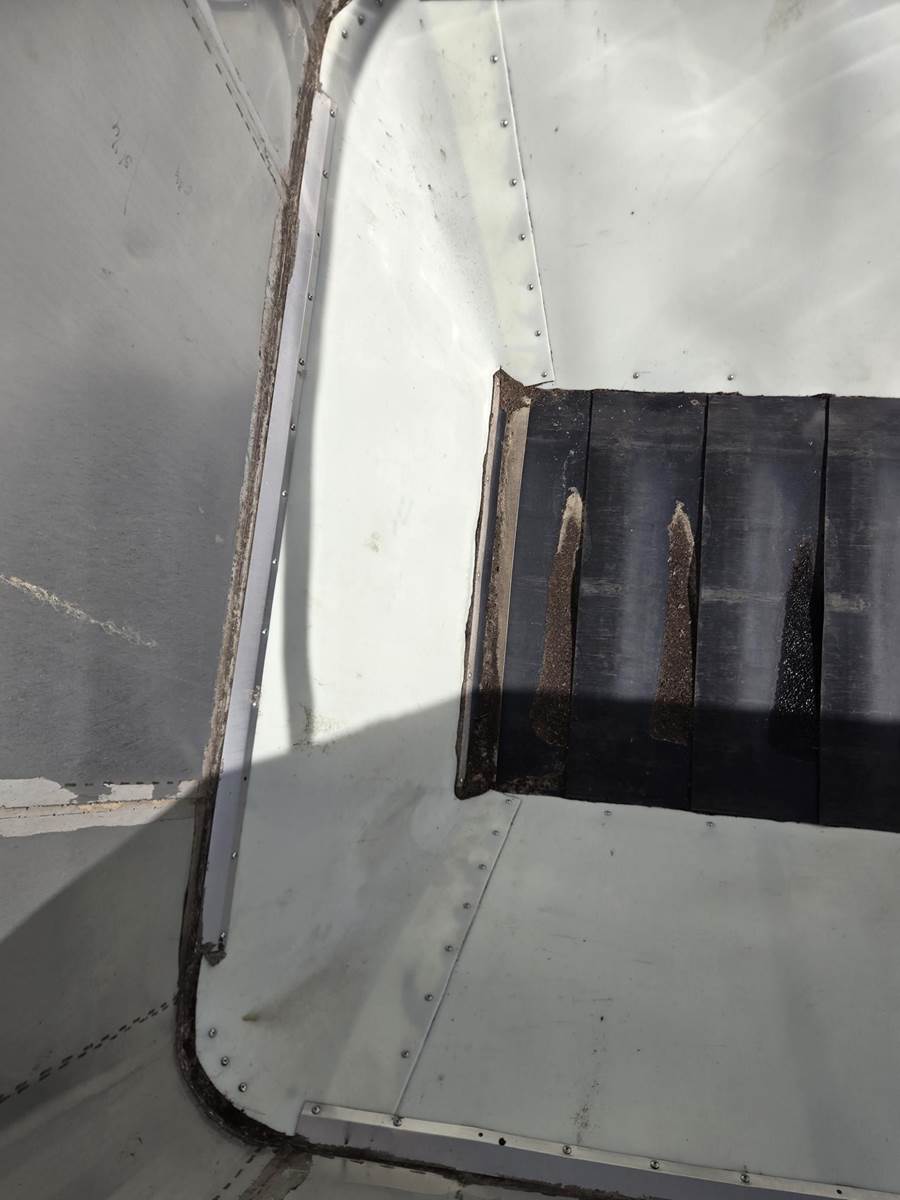

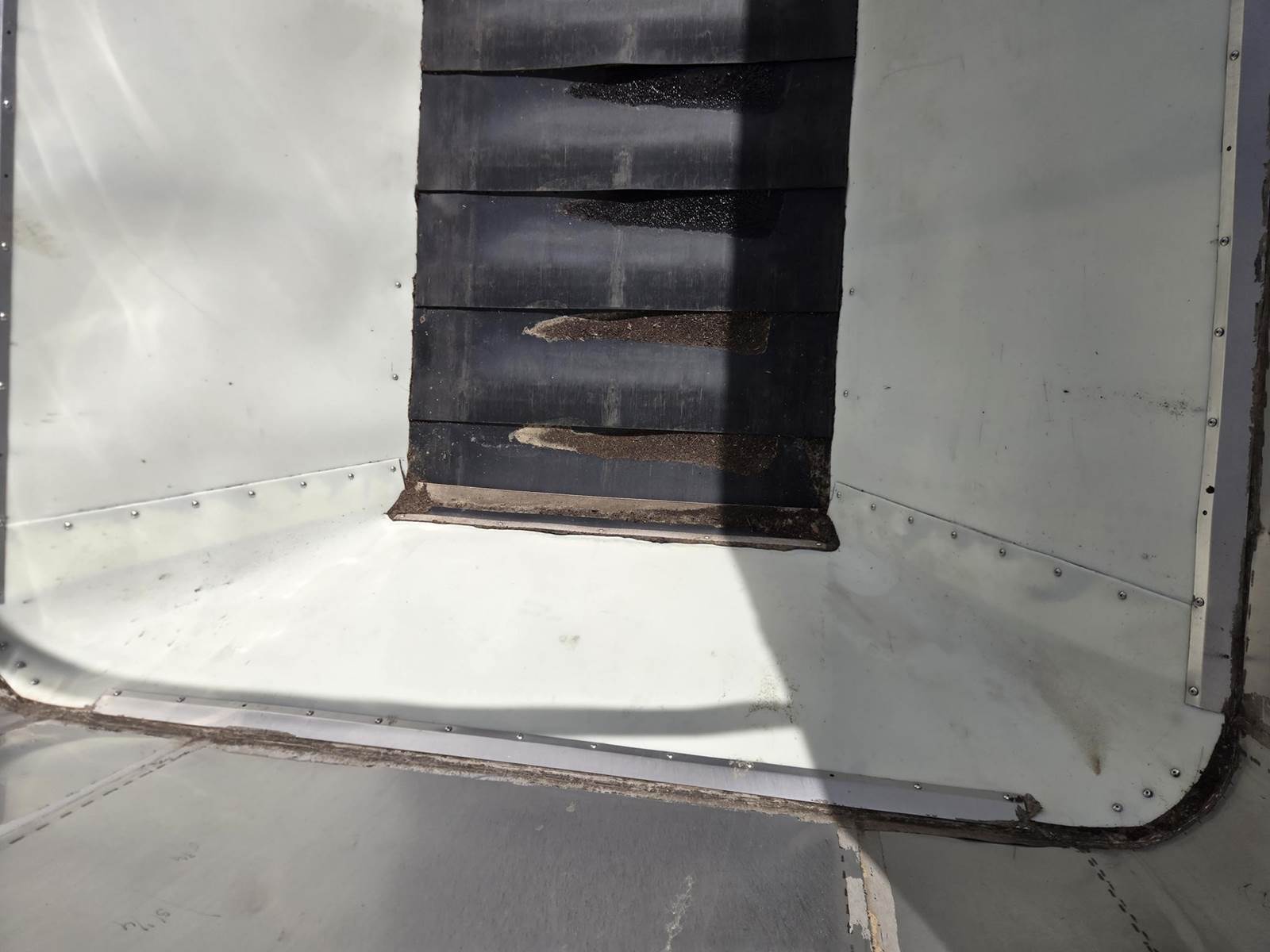

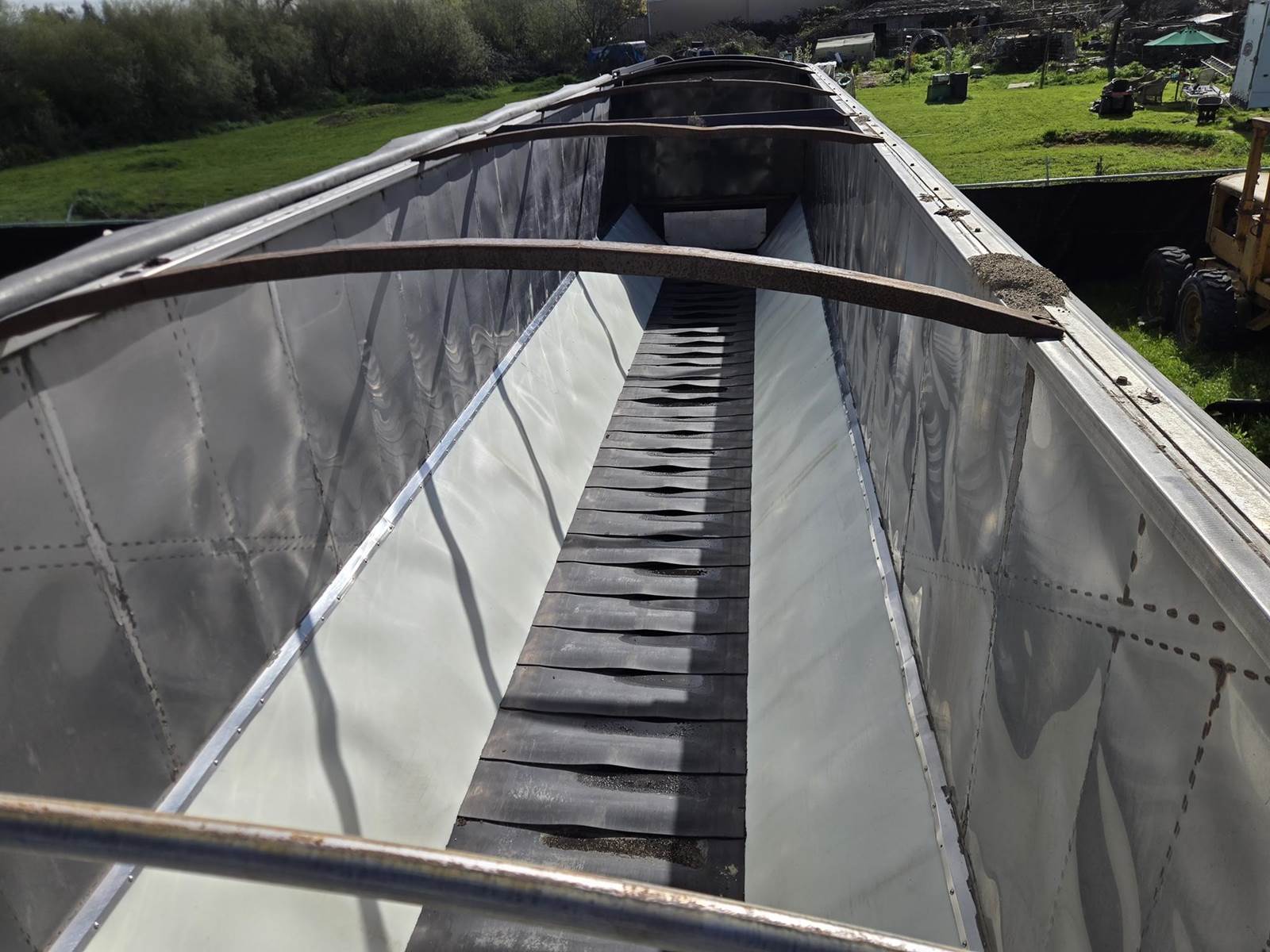

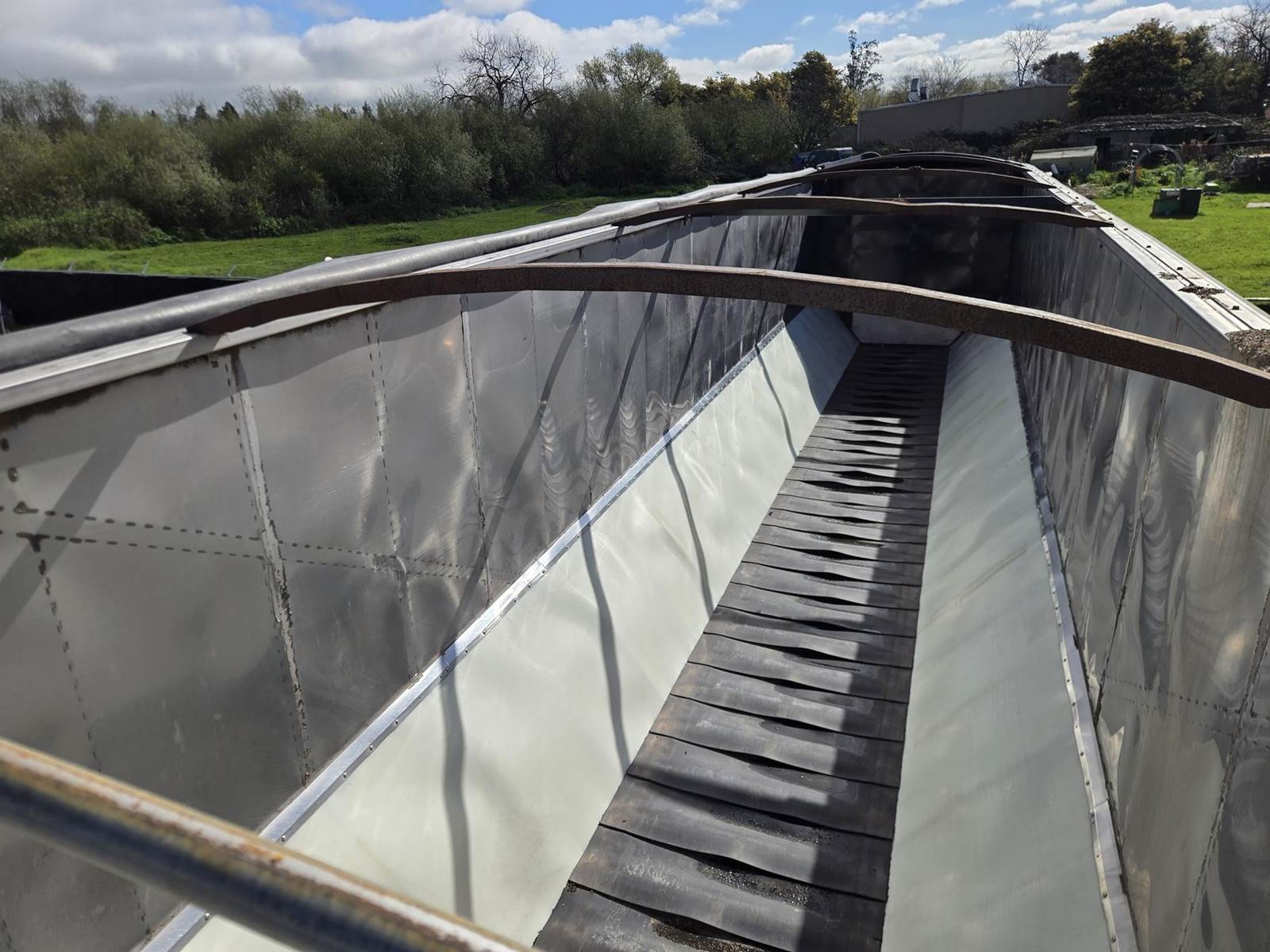

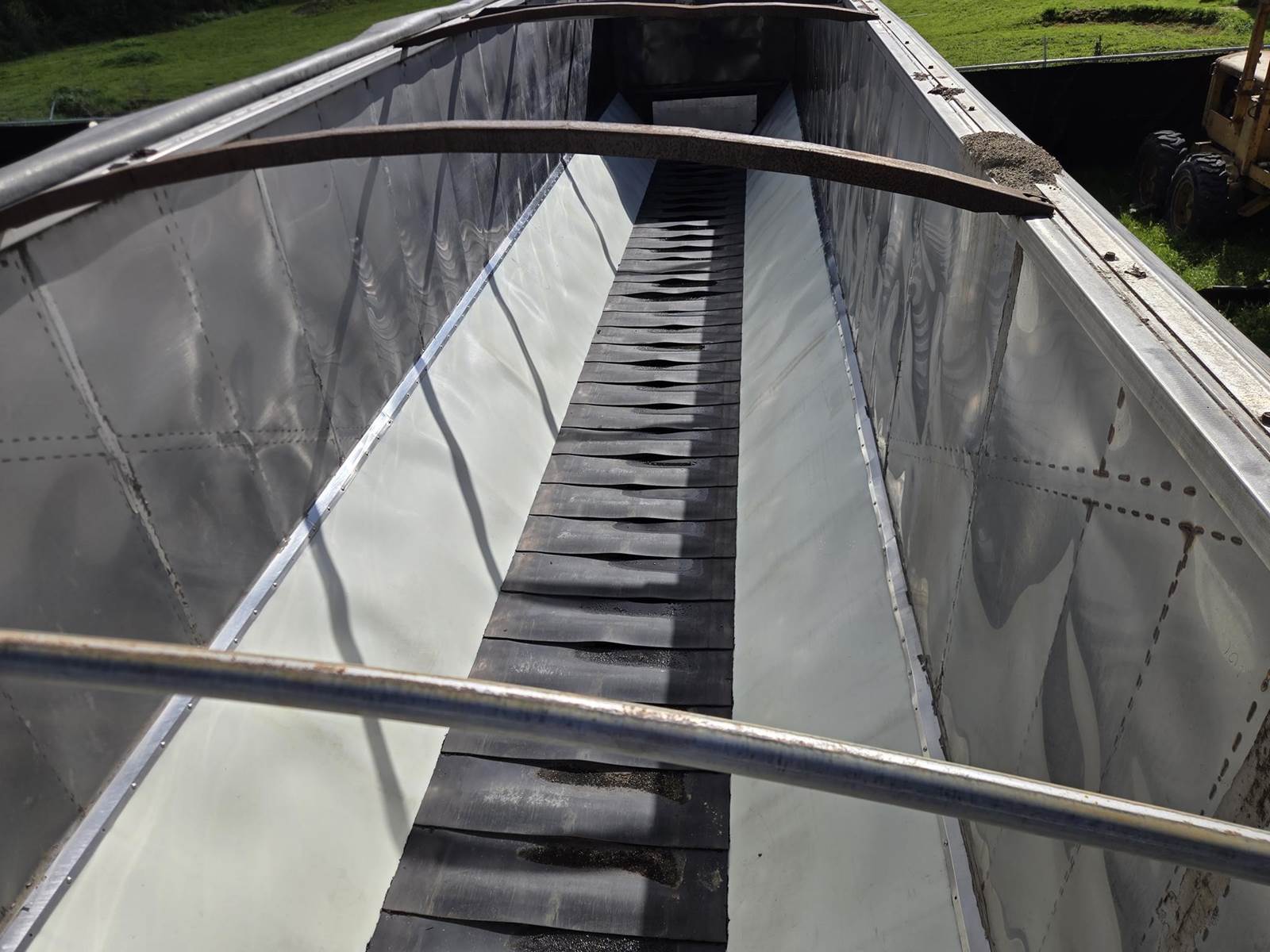

Liner Options

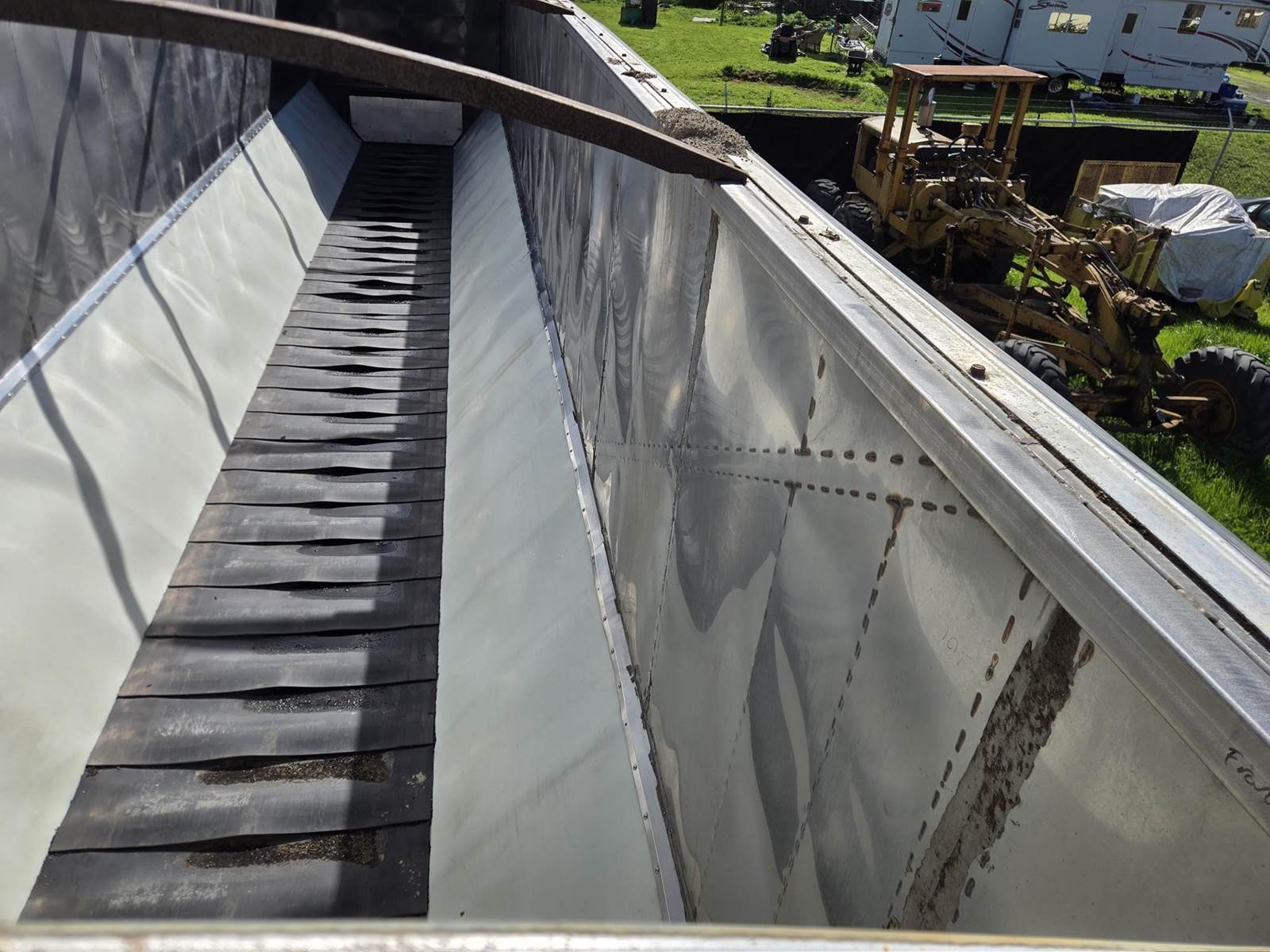

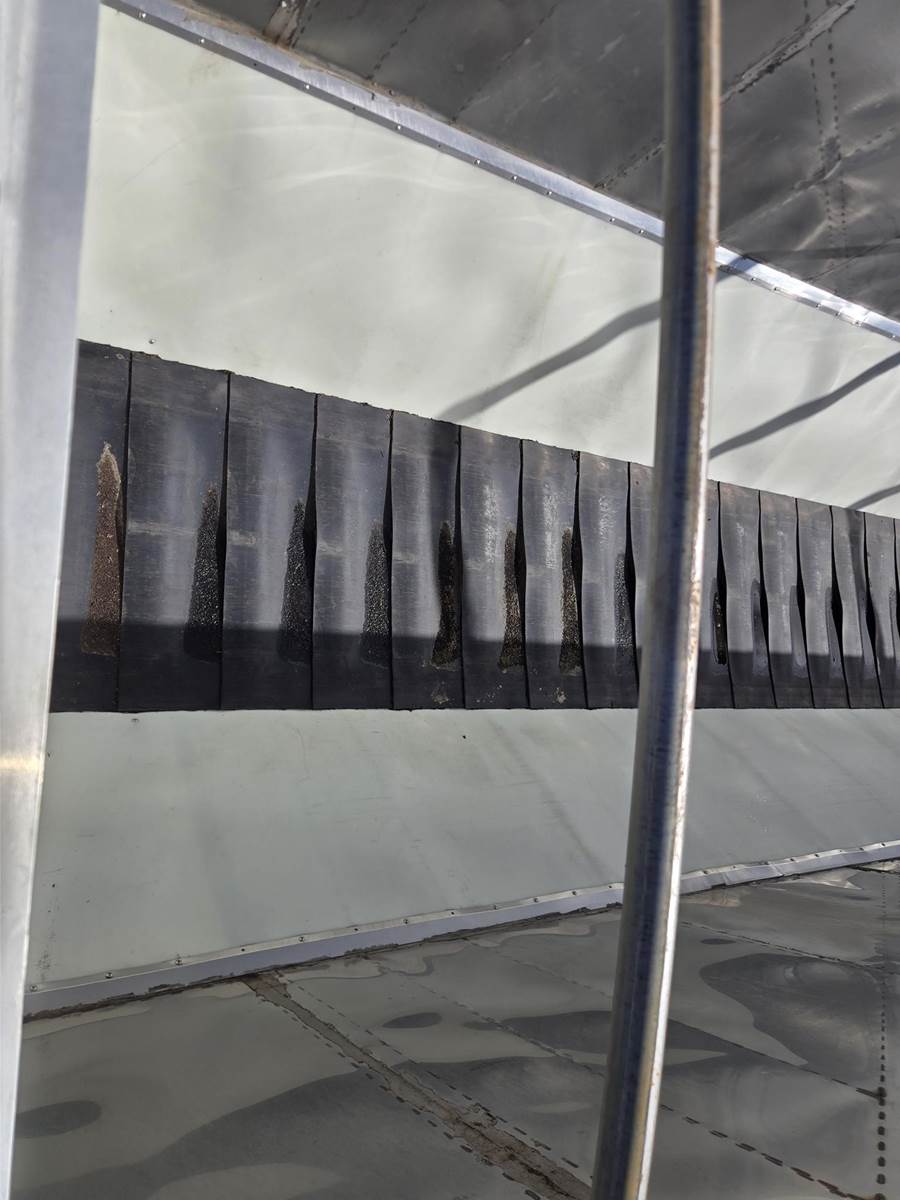

Floor Liner: 1/4" Thick UHMW

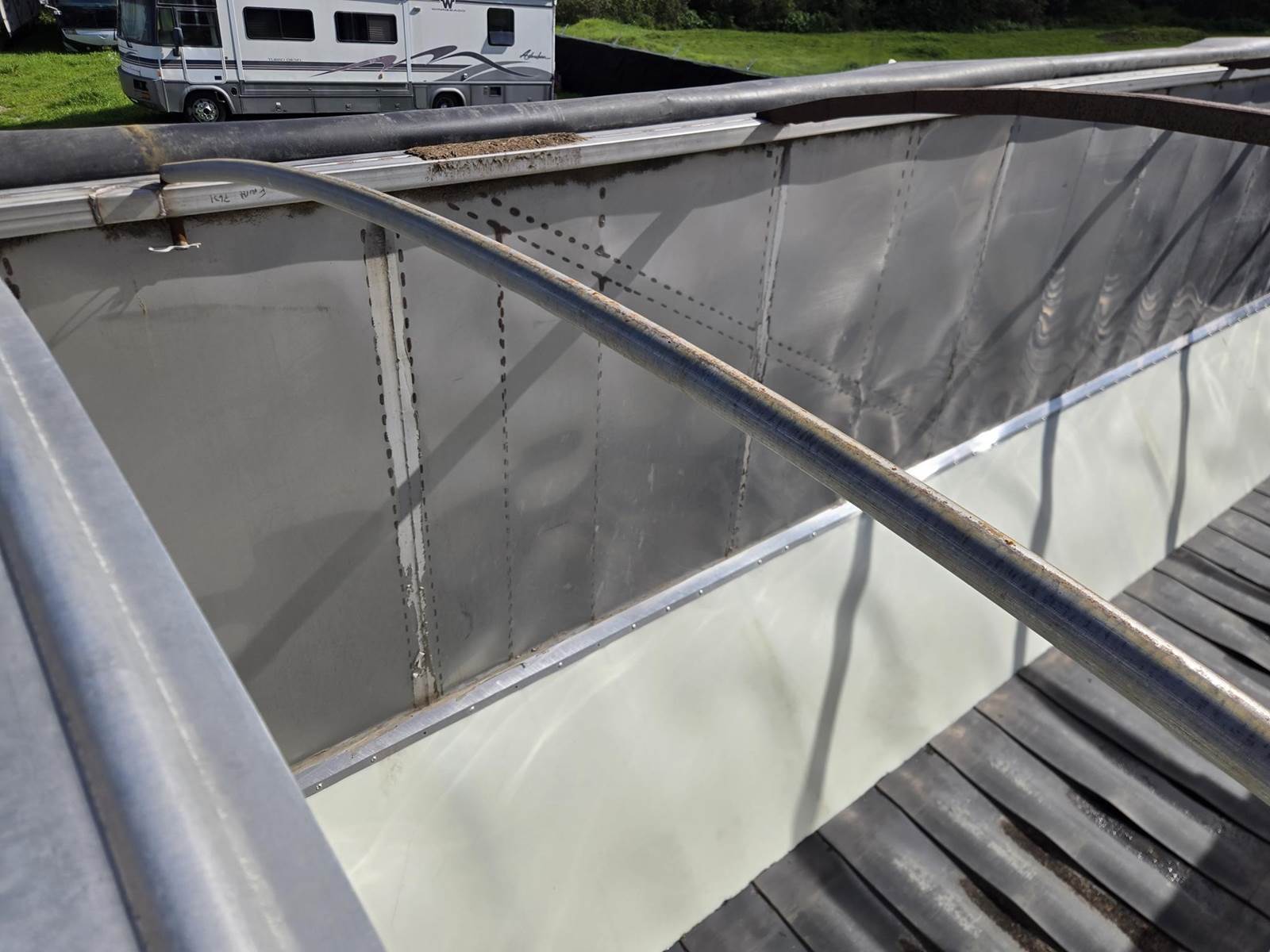

Side Liner: 3/16" Thick HMW
Side Liner Height: Low (Top of Slope)
Paint Options
Paint Color: BK-1 Black
Bolt-On Acc. Color: Body Match
Polyurethane Bin Sealant: Yes
BTE: 26.5
FAB TE: 109.5
